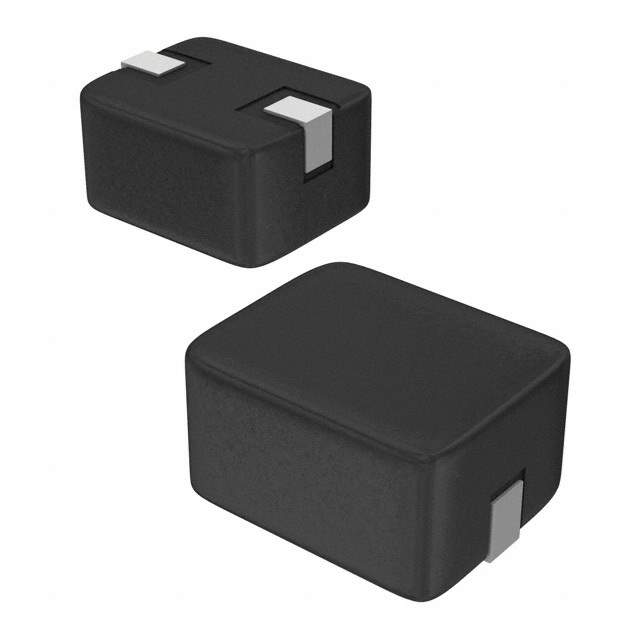

Same model may have multiple batches, images only for reference.

IHLP1212BZERR36M11

Name: IHLP1212BZERR36M11
Brand: Vishay
SKU: 460325
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP1212BZERR36M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 360NH 6.3A 13.8 MOHM
Datasheet	IHLP1212BZERR36M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Molded
Inductance	360nH
Tolerance	±20%
Current Rating	6.3A
Current - Saturation	6.5A
DC Resistance (DCR)	13.8 mOhm Max
Frequency - Self Resonant	170MHz
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.079" (2.00mm)
Win Source Part Number	1045182-IHLP1212BZERR36M11
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IHLP1212BZERR36M11 CAD Model

Alternative Products

Description

The Vishay IHLP1212BZERR36M11 is an active molded inductor with a current rating of 6.3A and an inductance of 360nH.

Current Rating: 6.3A
Inductance: 360nH
Mounting: SMD (SMT)
Height: 0.079" (2.00mm)
Tolerance: ±20%
DC Resistance (DCR): 13.8 mOhm Max
Frequency - Self-Resonant: 170MHz
Frequency - Test: 100kHz
Popularity: Medium
Supply and Demand: Balanced
Operating Temperature: -55°C to 125°C
