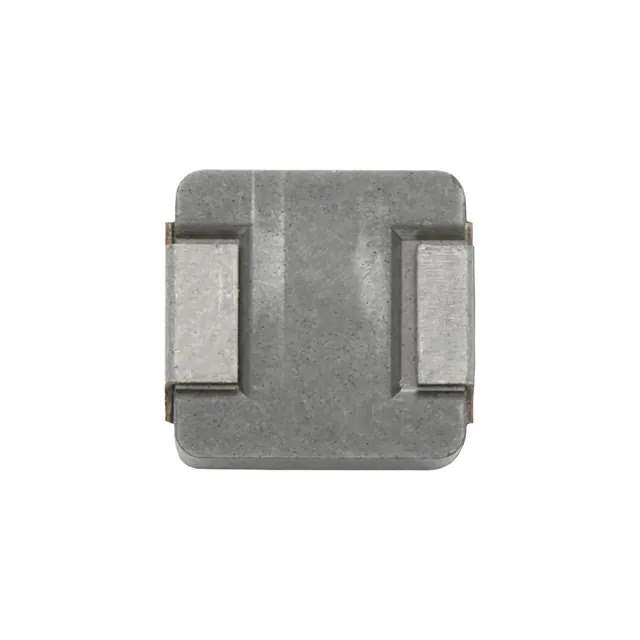

Same model may have multiple batches, images only for reference.

IHLP2525CZER100M1A

Name: IHLP2525CZER100M1A
Brand: Vishay
SKU: 825728
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	IHLP2525CZER100M1A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2525CZ-1A 10 20% ER E3
Datasheet	IHLP2525CZER100M1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Vishay
Series	IHLP-2525CZ-1A
Package	Tape & Reel
Product Status	Active
Material - Core	Iron Powder
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	3.5A
Shielding	Shielded
DC Resistance (DCR)	71.2mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	825728-IHLP2525CZER100M1A
Ultra Librarian 3D Model	Ultra Librarian IHLP2525CZER100M1A CAD Model

Alternative Products

Description

The IHLP2525CZER100M1A is a fixed inductor from Vishay.

Series: IHLP-2525CZ-1A
Shielded: Yes
Size: 0.270" L x 0.255" W (6.86mm x 6.47mm)
Seated Height: 0.118" (3.00mm)
Inductance: 10 µH
Tolerance: ±20%
Current: 4 A
Temperature Range: -55°C to 125°C
DC Resistance: 71.2mOhm
Mounting Type: Surface Mount
