Same model may have multiple batches, images only for reference.

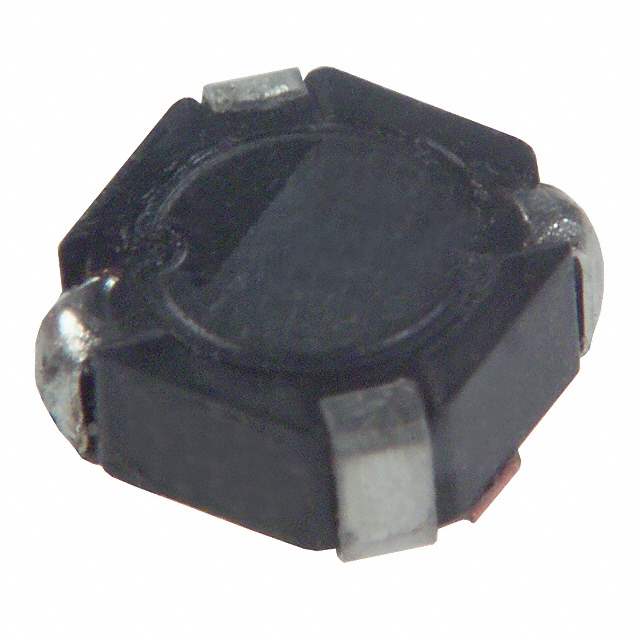

ELL-4LM100M Real Image
Same model may have multiple batches, images only for reference.

ELL-4LM100M

Part No ELL-4LM100M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 10UH 690MA 180 MOHM
Datasheet
ELL-4LM100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 10μH
Tolerance ±20%
Current Rating 690mA
DC Resistance (DCR) 180 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 109061-ELL-4LM100M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-4LM100M CAD Model

Description

Description

The ELL-4LM100M is an advanced inductor designed for efficiency and high performance. Its design accommodates a variety of electronic systems requiring precise inductance and minimal loss.

Features and Benefits

  • High inductance stability
  • Minimized energy losses
  • Compact and lightweight design

Applications

  • Automotive electronics
  • Industrial control systems
  • High-frequency applications
  • Power management systems
