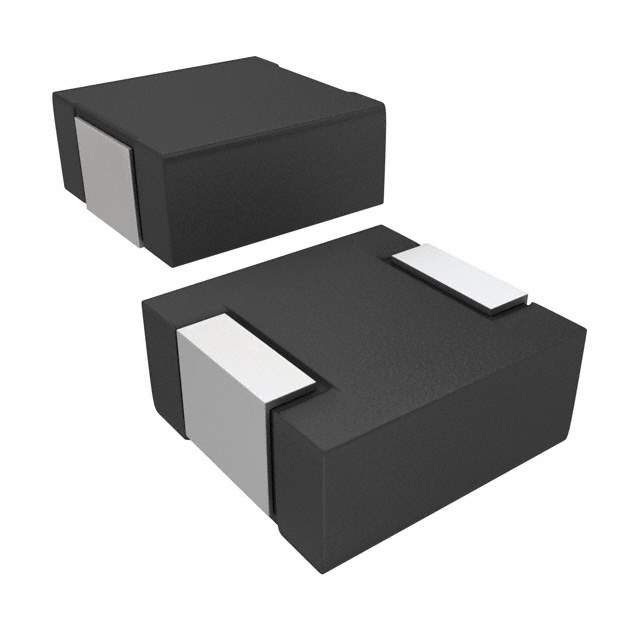

IHLP2525CZER2R2M11

Name: IHLP2525CZER2R2M11
Brand: Vishay
SKU: 602628
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2525CZER2R2M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	Low Profile, High Current IHLP® Inductors
Datasheet	IHLP2525CZER2R2M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-2525CZ-11
Packaging	Reel - TR
Type	Molded
Inductance	2.2μH
Tolerance	±20%
Current Rating	9A
Current - Saturation	7A
Shielding	Shielded
DC Resistance (DCR)	16.5 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Win Source Part Number	1185316-IHLP2525CZER2R2M11
Manufacturer Homepage	www.vishay.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	IHLP-2525CZ-11
Introduction Date	October 11, 2006
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian IHLP2525CZER2R2M11 CAD Model

Alternative Products

Description

The Vishay IHLP-2525CZ-11 is a molded type shielded inductor that has an inductance of 2.2μH and a current rating of 9A. The inductor is SMD mounted and has a tolerance of ±20%.

Inductance: 2.2μH
Current Rating: 9A
Mounting: SMD
Tolerance: ±20%
DC Resistance (DCR): 16.5 mOhm Max
Operating Temperature Range: -55°C ~ 125°C
Package: nonstandard
Size: 0.270" L x 0.255" W (6.86mm x 6.47mm)
Popularity: high
