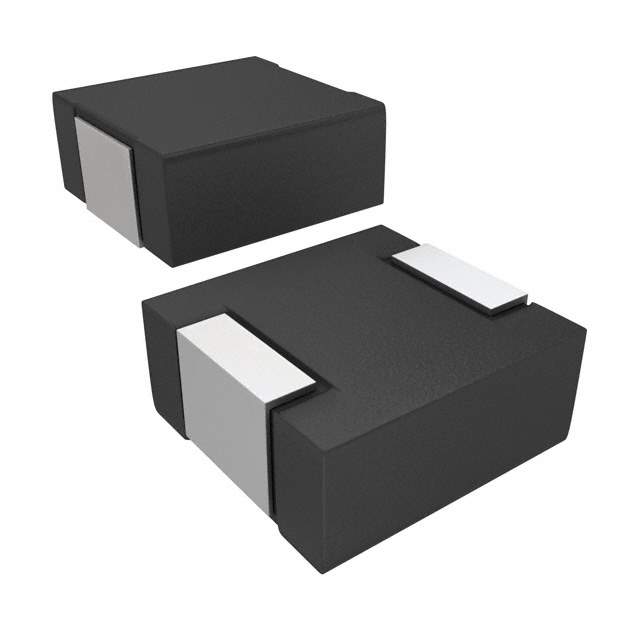

IHLP2525CZER8R2M11

Name: IHLP2525CZER8R2M11
Brand: Vishay
SKU: 776706
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP2525CZER8R2M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 5A 54.9 MOHM SMD / Inductor Power Shielded Wirewound 8.2uH 20% 100KHz Powdered Iron 5A 0.0523Ohm DCR 2525 T/R
Datasheet	IHLP2525CZER8R2M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-2525CZ-11
Packaging	Reel package
Type	Molded
Inductance	8.2μH
Tolerance	±20%
Current Rating	5A
Current - Saturation	4A
Shielding	Shielded
DC Resistance (DCR)	54.9 mOhm Max
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Win Source Part Number	776706-IHLP2525CZER8R2M11
Popularity	Medium
Supply and Demand Status	Balance
Family Name	IHLP-2525CZ-11
Introduction Date	October 11, 2006
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IHLP2525CZER8R2M11 CAD Model

Alternative Products

Description

The IHLP2525CZER8R2M11 is a shielded inductor that falls under the category of inductors, coils, and chokes. Manufactured by Vishay Dale.

Series: IHLP-2525CZ-11
Package: Nonstandard Package
Current Rating: 5A
Inductance: 8.2μH
Tolerance: ±20%
DC Resistance (DCR): 54.9 mOhm Max
Operating Temperature Range: -55°C ~ 125°C
Applications: Power supplies, DC-DC converters, and filtering
