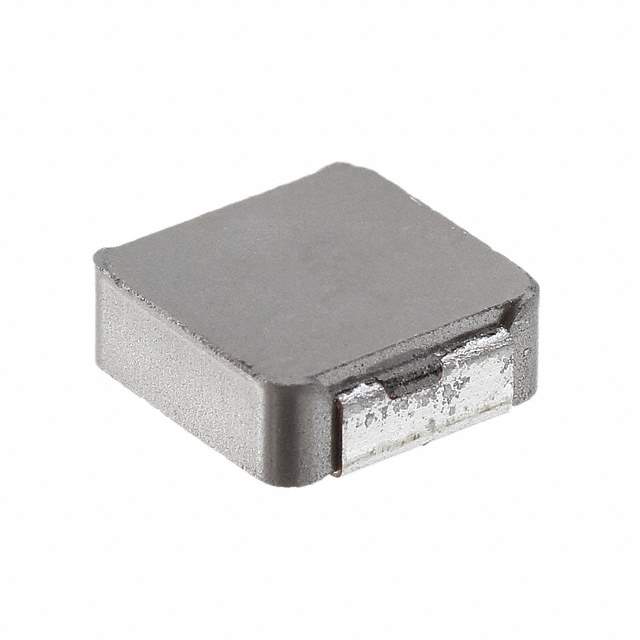

This electronic component is a product of Vishay Dale manufacturer and has a Win Source Part Number of 811079-IHLP3232CZER1R5M11. The product is packaged in a reel and is of molded type. The mounting style is SMD and it is shielded. The inductance of this product is 1.5μH with a tolerance of ±20%. The current-saturation is 11.3A and the frequency-self resonant is 35MHz. The DC Resistance (DCR) is 9.94mOhm Max and the supplier device package is nonstandard. The temperature range - operating is -55°C ~ 125°C. The dimension of this product is 0.340" L x 0.322" W (8.64mm x 8.18mm) and the manufacturer package is nonstandard. The height-seated (maximum) is 0.118" (3.00mm). The supply and demand status of this product is limited. The manufacturer pack quantity of this product is 1,000 and it has an MSL level of 1 (Unlimited). The current rating (Amps) is 12.5A and the inductance frequency-test is 100kHz.

• Inductance: 1.5μH
• Tolerance: ±20%
• Current-Saturation: 11.3A
• Frequency-Self Resonant: 35MHz
• DC Resistance (DCR): 9.94mOhm Max
• Operating Temperature: -55°C ~ 125°C
• Dimension: 0.340" L x 0.322" W (8.64mm x 8.18mm)
• Height-Seated (Maximum): 0.118" (3.00mm)
• Current Rating: 12.5A
• Inductance Frequency-Test: 100kHz
