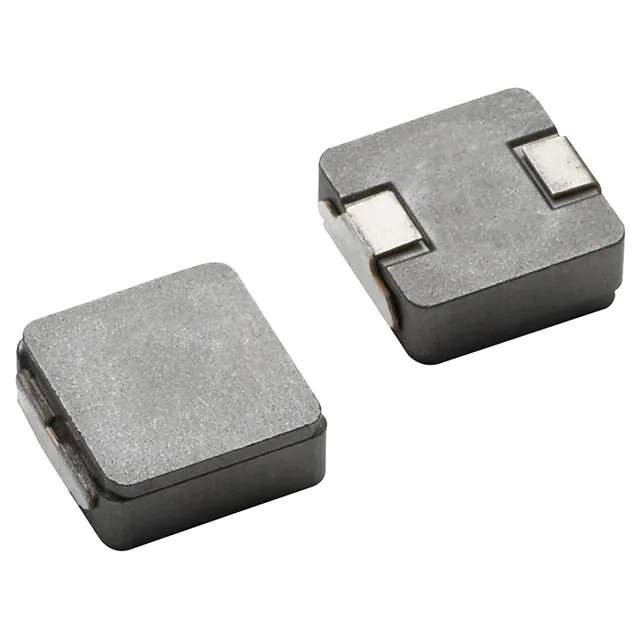

Same model may have multiple batches, images only for reference.

IHLP4040DZER101M1A

Name: IHLP4040DZER101M1A
Brand: Vishay
SKU: 156214
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP4040DZER101M1A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-4040DZ-1A 100 20% ER E3
Datasheet	IHLP4040DZER101M1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Vishay
Series	IHLP-4040DZ-1A
Package	Tape & Reel
Product Status	Active
Material - Core	Metal Composite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	2.25A
Shielding	Shielded
DC Resistance (DCR)	270mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max)	0.157" (4.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	156214-IHLP4040DZER101M1A
Ultra Librarian 3D Model	Ultra Librarian IHLP4040DZER101M1A CAD Model

Alternative Products

Description

The 156214-IHLP4040DZER101M1A is a fixed inductor from Vishay's IHLP-4040DZ-1A series.

Type: Shielded inductor
Size: 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height: 0.157" (4.00mm)
Mounting: Surface mount
Inductance: 100µH
Tolerance: ±20%
DC Resistance (DCR): 270mOhm max
Current Rating: 2.5A
Operating Temperature Range: -55°C to 125°C
Standard: AEC-Q200 (automotive applications)
Core: Metal composite
