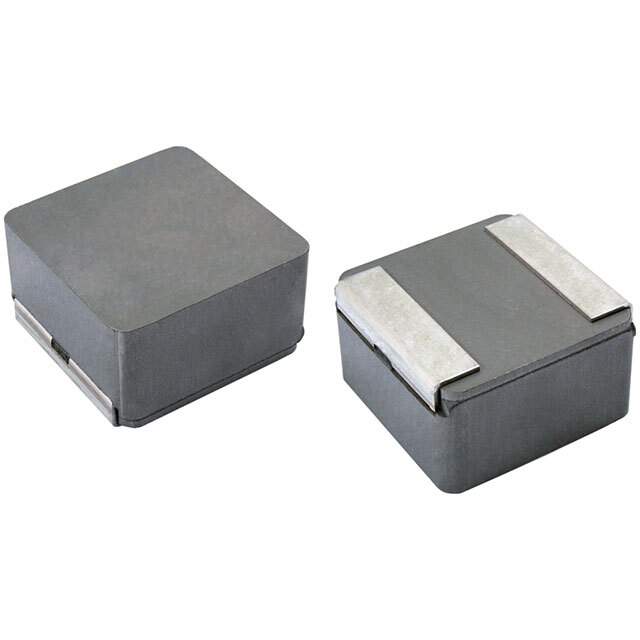

Same model may have multiple batches, images only for reference.

IHLP8787MZER470M5A

Name: IHLP8787MZER470M5A
Brand: Vishay
SKU: 1021719
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP8787MZER470M5A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-8787MZ-5A 47 20% ER E3 / 47 µH Shielded Inductor 13.5 A 17.7mOhm Max Nonstandard
Datasheet	IHLP8787MZER470M5A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-8787MZ-5A
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	47 µH
Tolerance	±20%
Current Rating (Amps)	13.5 A
Current - Saturation (Isat)	10A
Shielding	Shielded
DC Resistance (DCR)	17.7mOhm Max
Frequency - Self Resonant	2.99MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max)	0.512" (13.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP8787MZER470M5ADKR,541-IHLP8787MZER470M5ATR,541-IHLP8787MZER470M5ACT
Standard Package	100
Win Source Part Number	1021719-IHLP8787MZER470M5A
Ultra Librarian 3D Model	Ultra Librarian IHLP8787MZER470M5A CAD Model

Alternative Products

Description

The Vishay IHLP-8787MZ-5A series inductor is a shielded, fixed inductor designed for use in a range of applications.

Inductance: 47 µH
Current Rating: 13.5A
Package: Nonstandard
Package Type: Tape and Reel
Popularity: High
