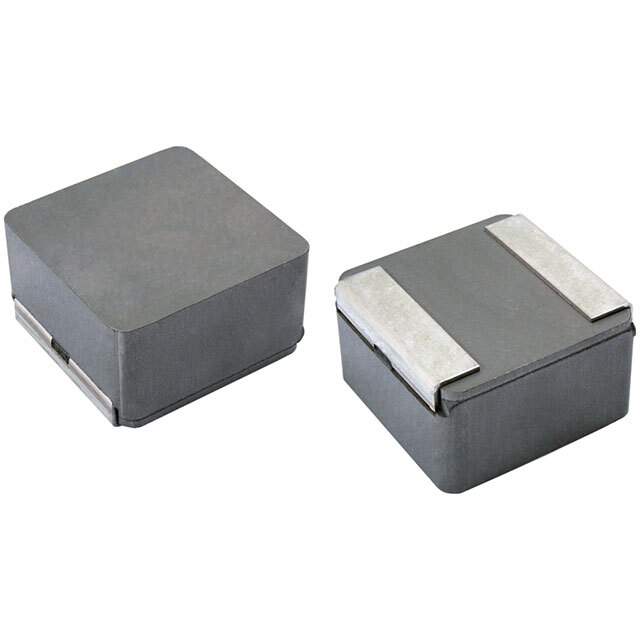

Same model may have multiple batches, images only for reference.

IHLP8787MZER6R8M5A

Name: IHLP8787MZER6R8M5A
Brand: Vishay
SKU: 1202280
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP8787MZER6R8M5A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 36A 3.09MOHM SMD / 6.8 µH Shielded Molded Inductor 36 A 3.09mOhm Max Nonstandard
Datasheet	IHLP8787MZER6R8M5A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-8787MZ-5A
Package	Tape & Reel
Type	Molded
Inductance	6.8 µH
Tolerance	±20%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	36A
Shielding	Shielded
DC Resistance (DCR)	3.09mOhm Max
Frequency - Self Resonant	8.03MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max)	0.512" (13.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-IHLP8787MZER6R8M5ACT,IHLP8787MZER6R8M5A-ND,541-IHLP8787MZER6R8M5ATR,541-IHLP8787MZER6R8M5ADKR
Standard Package	100
Win Source Part Number	1202280-IHLP8787MZER6R8M5A
Ultra Librarian 3D Model	Ultra Librarian IHLP8787MZER6R8M5A CAD Model

Alternative Products

Description

The Vishay Dale IHLP-8787MZ-5A is a molded fixed inductor with a shielding feature.

Type: Molded Fixed Inductor
Shielding: Yes
Inductance: 6.8 µH
Tolerance: ±20%
Standard Package: 100
Mounting: SMD (SMT)
DC Resistance (DCR): 3.09mOhm Max
Current Rating: 36 A
AEC-Q200: Yes
Temperature Range: -55°C to 155°C
ECCN: EAR99
HTSUS: 8504.50.4000
Manufacturer: Vishay Dale
