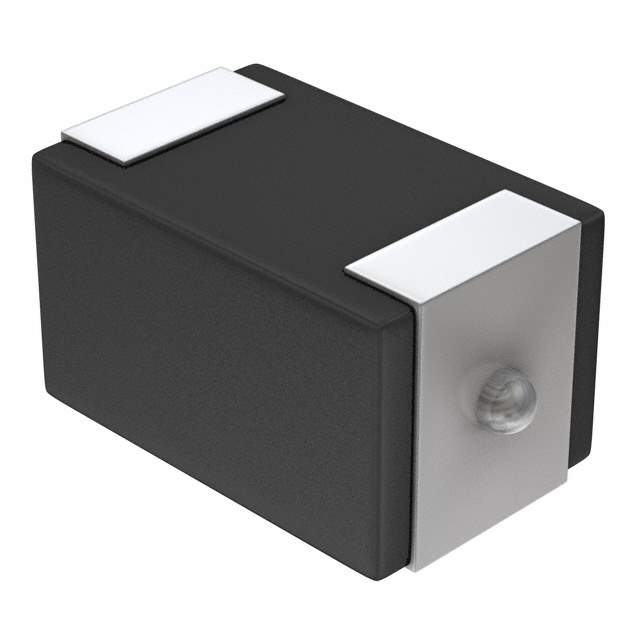

IHSM3825ER4R7L Real Image
Same model may have multiple batches, images only for reference.

IHSM3825ER4R7L

Part No IHSM3825ER4R7L
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.17A 83MOHM SMD
Datasheet
IHSM3825ER4R7L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 10 Weeks
Features Unshielded - Inductor 83mOhm Max Nonstandard
Manufacturer Vishay
Series IHSM-3825
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 541-1054-6, 541-1054-2, 541-1054-1
Quantity per package 750
Popularity High
Supply and Demand Status Balance
Win Source Part Number 921108-IHSM3825ER4R7L
Ultra Librarian 3D Model Ultra Librarian IHSM3825ER4R7L CAD Model

Description

The IHSM3825ER4R7L is an unshielded inductor from Vishay that operates in the Inductors category.

  • Quantity per Package: 750
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 10 weeks
  • Series: IHSM-3825
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
