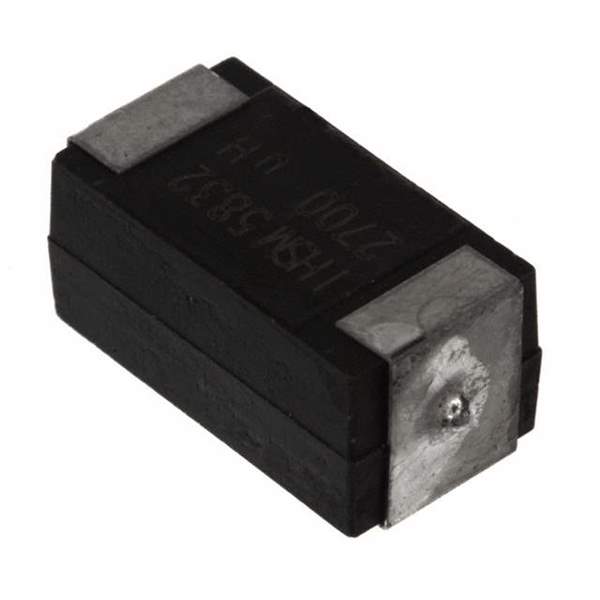

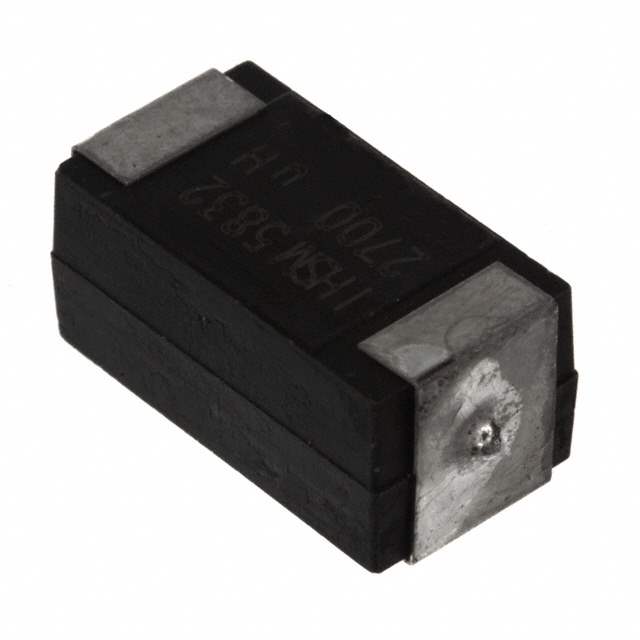

Same model may have multiple batches, images only for reference.

IHSM4825ER180L

Name: IHSM4825ER180L
Brand: Vishay
SKU: 156329
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHSM4825ER180L
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 18UH 1.9A 119 MOHM SMD
Datasheet	IHSM4825ER180L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Material - Core	Ferrite
Inductance	18μH
Tolerance	±15%
Current Rating	1.9A
Current - Saturation	1.1A
DC Resistance (DCR)	119 mOhm Max
Temperature Range - Operating	-55°C to 125°C
Frequency - Test	1kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.225" (5.72mm)
Win Source Part Number	017205-IHSM4825ER180L
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IHSM4825ER180L CAD Model

Alternative Products

Description

The Vishay IHSM4825ER180L is a ferrite core surface-mount inductor designed to provide high inductance and current rating.

Inductance: 18μH
Current Rating: 1.9A
DC Resistance: 119 mOhm Max
Tolerance: ±15%
Height: 0.225" (5.72mm)
Mounting Type: SMD (SMT) technology
Operating Temperature Range: -55°C to 125°C
Packaging: reel
Production Status: active
