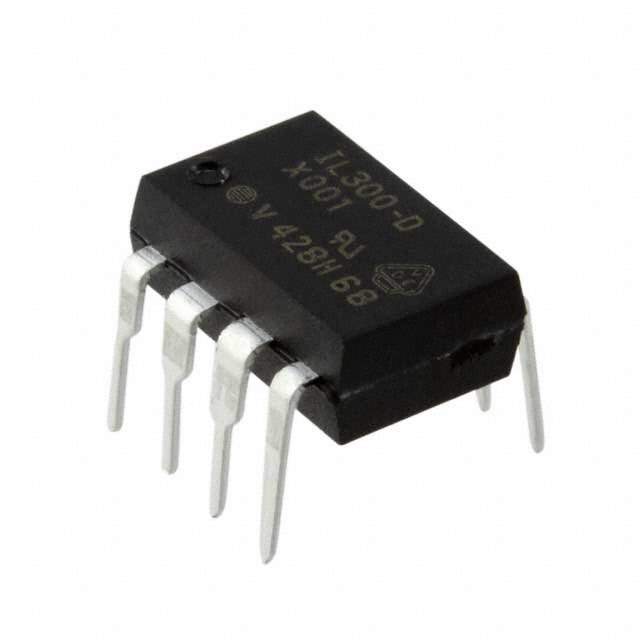

The IL300-DEFG-X001 is an Analog Isolator designed and manufactured by Vishay. It is designed for accurate isolation of analog signals. It utilizes optical coupling to provide galvanic isolation between the input and output, ensuring high levels of safety and signal integrity.

Applications:

• Industrial process control
• Medical equipment
• Data Acquisition Systems
• Test and Measurement equipment
• Power Supply Feedback Control

Features:

• High linearity and gain stability
• Galvanic isolation
• Wide bandwidth
• Low input offset voltage
• Compact package

Benefits:

• Enhances system safety by providing electrical isolation
• Reduces ground loop noise and interference
• Maintains signal integrity in harsh environments
• Enables precise and reliable analog signal transmission
• Simplifies circuit design

Additional Details:

The IL300-DEFG-X001 analog isolator is characterized by its high linearity, making it suitable for applications requiring accurate signal reproduction. The galvanic isolation ensures safety in high-voltage environments, protecting sensitive circuitry from damage. The wide bandwidth allows for the transmission of high-frequency signals without significant distortion. Its low input offset voltage contributes to the overall accuracy of the system. The device operates from a dual power supply. The IL300 series is commonly used in applications where precision and safety are paramount.
