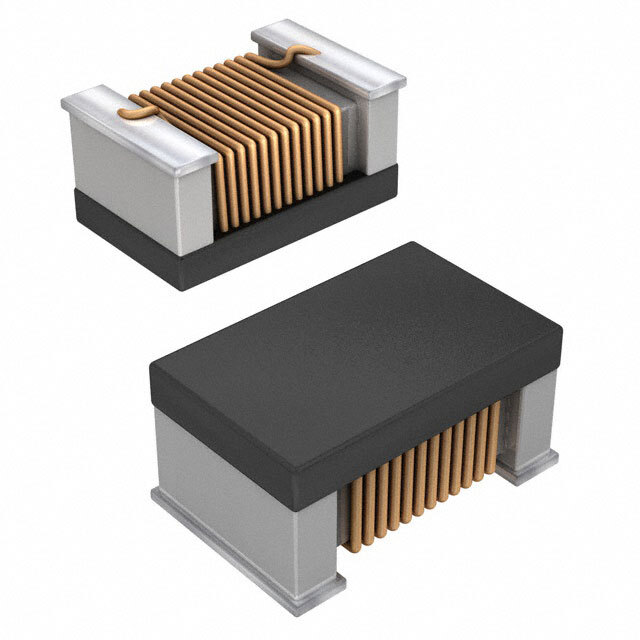

Same model may have multiple batches, images only for reference.
IMC0805ER5N6J01 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IMC0805ER5N6J01

Part No IMC0805ER5N6J01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 5.6NH 600MA 80MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 5.6 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 80mOhm Max
Q @ Freq 60 @ 1GHz
Frequency - Self Resonant 5.8GHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532503-IMC0805ER5N6J01
Ultra Librarian 3D Model Ultra Librarian IMC0805ER5N6J01 CAD Model
