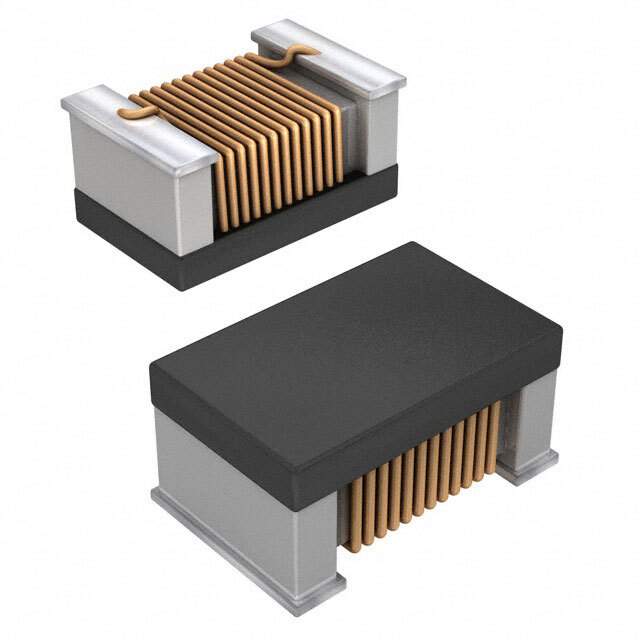

IMC0805ERR27J01

Name: IMC0805ERR27J01
Brand: Vishay
SKU: 1327643
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IMC0805ERR27J01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 270NH 350MA 1.46OHM SM / 270 nH Unshielded Drum Core, Wirewound Inductor 350 mA 1.46Ohm Max 0805 (2012 Metric)
Datasheet	IMC0805ERR27J01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	270 nH
Tolerance	±5%
Current Rating (Amps)	350 mA
Shielding	Unshielded
DC Resistance (DCR)	1.46Ohm Max
Q @ Freq	45 @ 250MHz
Frequency - Self Resonant	850MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.055" (1.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	2,000
Win Source Part Number	1327643-IMC0805ERR27J01
Ultra Librarian 3D Model	Ultra Librarian IMC0805ERR27J01 CAD Model

Alternative Products

Description

The IMC0805ERR27J01 is a fixed inductor designed for use in various applications, manufactured by Vishay Dale.

Inductance: 270 nH
Tolerance: ±5%
Shielding: Shielded
Package: 0805 (2012 Metric)
Mounting: Surface Mount
DC Resistance (DCR): 1.46Ohm Max
Current Rating: 350 mA
Frequency Self-Resonant: 850MHz
Q @ Freq: 45 @ 250MHz
Operating Temperature Range: -40°C to 105°C
