Same model may have multiple batches, images only for reference.

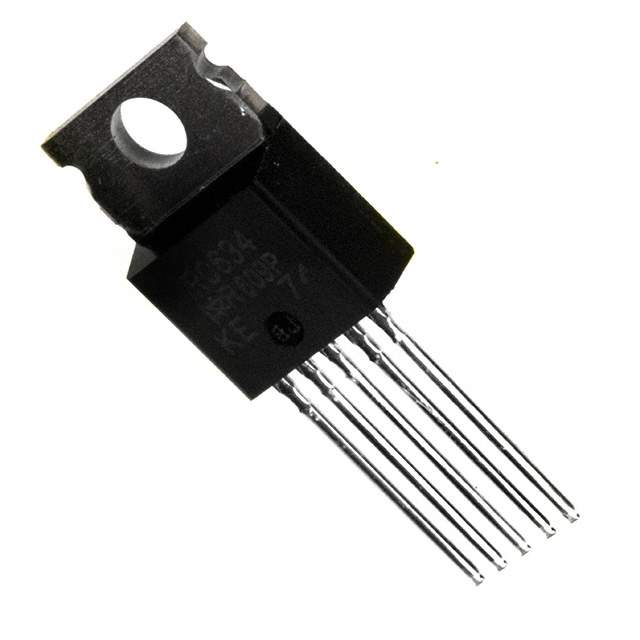

IRC634PBF Real Image
Same model may have multiple batches, images only for reference.

IRC634PBF

Part No IRC634PBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 8.1A TO-220-5 / Trans MOSFET N-CH 250V 8.1A 5-Pin(5+Tab) TO-220
Datasheet
IRC634PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 250V
Current - Continuous Drain (Id) @ 25°C 8.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 41nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 770pF @ 25V
Vgs (Maximum) ±20V
FET Feature Current Sensing
Power Dissipation (Maximum) 74W (Tc)
Rds On (Maximum) @ Id, Vgs 450 mOhm @ 4.9A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-220-5
Package TO-220-5
Win Source Part Number 777003-IRC634PBF
Popularity Medium
Supply and Demand Status Limited
Family Name IRC634
Introduction Date April 02, 2007
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRC634PBF CAD Model

Description

The Vishay Siliconix IRC634PBF is an obsolete MOSFET with a current sensing feature.

  • Package: TO-220-5
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Maximum Power Dissipation: 74W (Tc)
  • Maximum Drain-Source Voltage: 250V
  • Maximum Gate-Source Voltage: ±20V
  • Gate Charge: 41nC @ 10V
  • Popularity: Low
  • Supply and Demand: Limited
