IRC730PBF

Part No IRC730PBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 400V 5.5A TO-220-5
Datasheet
IRC730PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 400V
Continuous Drain Current at 25°C 5.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 38nC @ 10V
Max Input Capacitance 700pF @ 25V
Maximum Gate-Source Voltage ±20V
FET Feature Current Sensing
Power Dissipation (Max) 74W (Tc)
Maximum Rds On at Id,Vgs 1 Ohm @ 3.3A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole

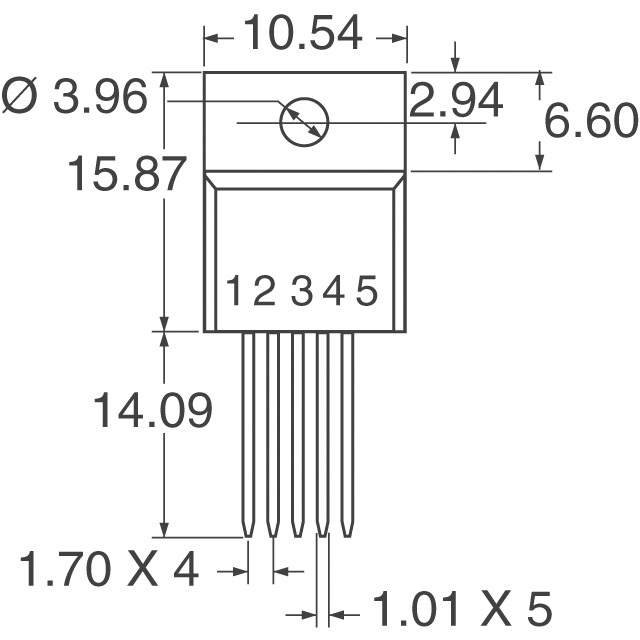

Case / Package TO-220-5
Dimension TO-220-5
Win Source Part Number 1046382-IRC730PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRC730PBF CAD Model

Description

This N-channel MOSFET features current sensing and has a maximum power dissipation of 74W (Tc).

  • Power Dissipation: 74W (Tc)
  • Package: TO-220-5
  • Drain-Source Breakdown Voltage: 400V
  • Continuous Drain Current @ 25°C: 5.5A (Tc)
  • Maximum Rds On @ Id,Vgs: 1 Ohm @ 3.3A, 10V
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 38nC @ 10V
  • Maximum Input Capacitance: 700pF @ 25V
  • Maximum Gate-Source Voltage: ±20V
