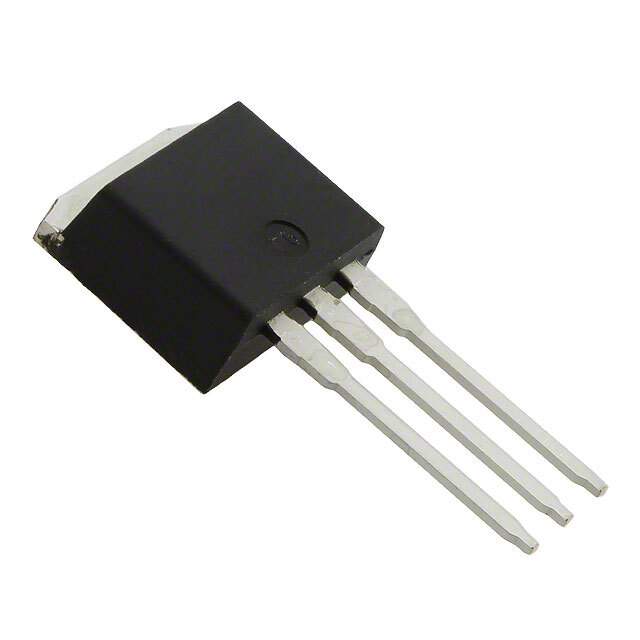

IRF820L

Name: IRF820L
Brand: Vishay
SKU: 604702
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRF820L
Manufacturer	Vishay
Catalog	FETs - Single
Description	Dynamic dV/dt rating \| MOSFET N-CH 500V 2.5A TO-262
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay Siliconix
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	500V
Id - Continuous Drain Current	2.5A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	3Ohm at 1.5A, 10V
Gate Source Voltage(th) (Maximum) at Id	4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	24nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	360pF at 25V
Power Dissipation (Maximum)	3.1W, 50W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	I2PAK
Manufacturer Package	TO-262-3 Long Leads, I2Pak, TO-262AA
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Win Source Part Number	1187390-IRF820L
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF820L CAD Model

Alternative Products

Description

The IRF820L is an N-Channel MOSFET that has a drain-source breakdown voltage of 500V and a continuous drain current of 2.5A manufactured by Vishay.

Drain-Source Breakdown Voltage: 500V
Continuous Drain Current: 2.5A
Package: I2PAK
Maximum Power Dissipation: 3.1W and 50W
Gate-Source Voltage: ±20V
Input Capacitance: 360pF @ 25V
Gate-Source Threshold Voltage: 4V @ 250μA
Gate Charge: 24nC @ 10V
Drive Voltage: 10V
Drain-Source Resistance: 3Ohm @ 1.5A, 10V
Supply and demand status: Limited
