The Vishay MOSFET is a N-channel polarity device with a drain-source breakdown voltage of 900V and a continuous drain current of 3.6A @ 25°C.

• Channel Type: N-channel
• Drain-Source Breakdown Voltage: 900V
• Continuous Drain Current: 3.6A @ 25°C
• Rds On @ Id, Vgs: 3.7 Ohm @ 2.2A, 10V
• Gate-Source Threshold Voltage: 4V @ 250μA
• Gate Charge: 78nC @ 10V
• Input Capacitance: 1200pF @ 25V
• Gate-Source Voltage: ±20V
• Drive Voltage (Max Rds On, Min Rds On): 10V

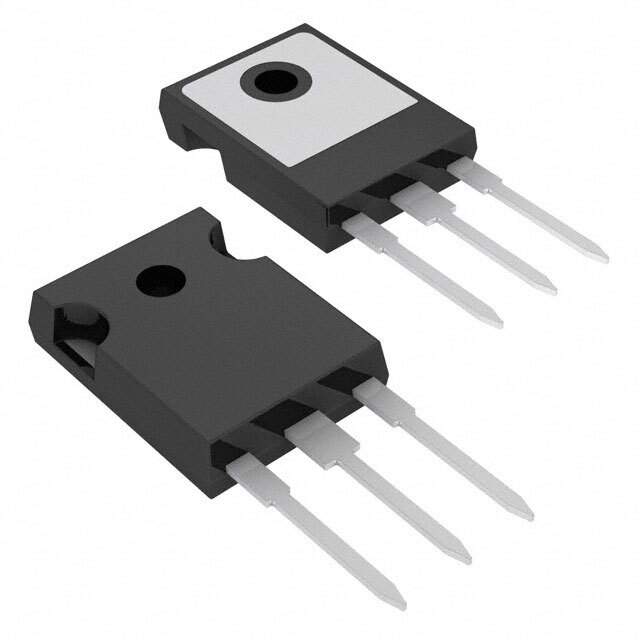

• Package: TO-247-3
• Operating Temperature: -55°C to 150°C (TJ)
• Supply and Demand: Limited
