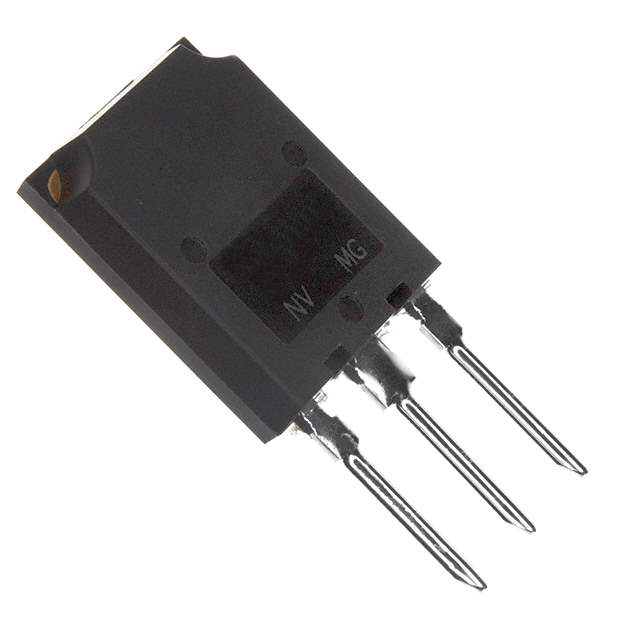

IRFPS37N50APBF Real Image IRFPS37N50APBF real image
Same model may have multiple batches, images only for reference.

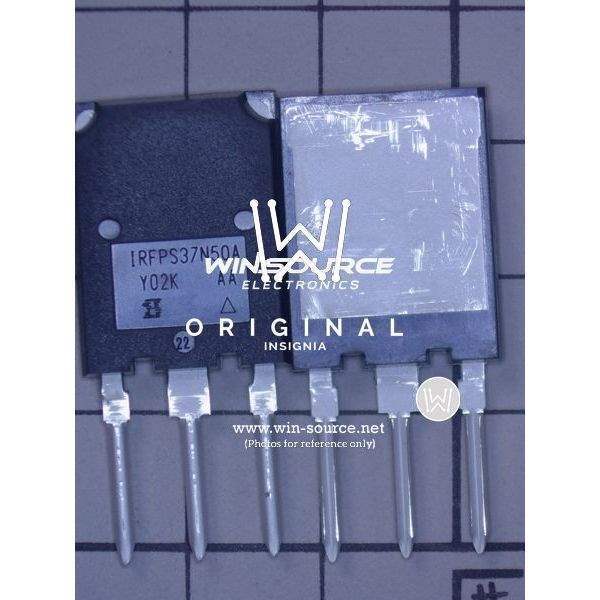

IRFPS37N50APBF Real Image IRFPS37N50APBF real image
IRFPS37N50APBF Real Image IRFPS37N50APBF real image
Same model may have multiple batches, images only for reference.

IRFPS37N50APBF

Part No IRFPS37N50APBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 36A SUPER247
Datasheet
IRFPS37N50APBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 180nC @ 10V
Max Input Capacitance 5579pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 446W (Tc)
Maximum Rds On at Id,Vgs 130 mOhm @ 22A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 069515-IRFPS37N50APBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFPS37N50APBF CAD Model

Description

The IRFPS37N50APBF is an N-channel MOSFET manufactured by Vishay.

  • Drain-Source Breakdown Voltage: 500V
  • Continuous Drain Current: 36A @ 25°C
  • Maximum Rds On: 130 mOhm @ 22A and 10V
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Mounting Type: Through-Hole
  • Packaging: Tube/Rail
  • Technology: MOSFET
  • Dimension: TO-274AA
