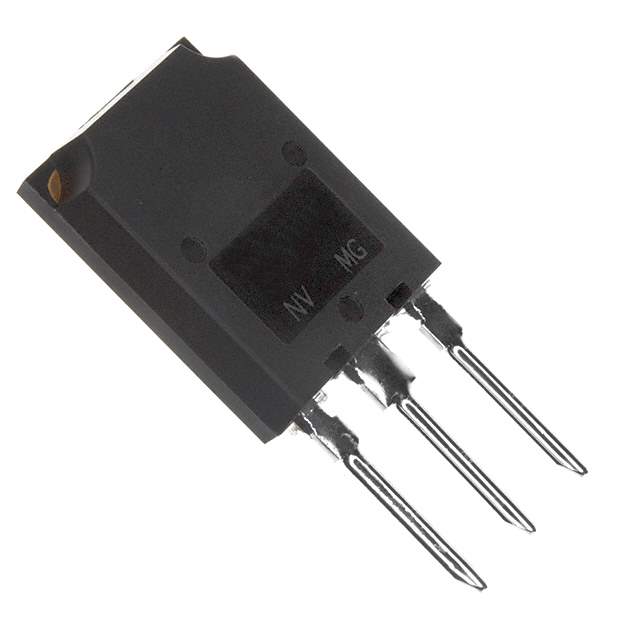

Same model may have multiple batches, images only for reference.

IRFPS40N50L

Name: IRFPS40N50L
Brand: Vishay
SKU: 605148
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	IRFPS40N50L
Manufacturer	Vishay
Catalog	FETs - Single
Description	Power MOSFET(Vdss=500V, Rds(on)typ.=0.087ohm, Id=46A) \| MOSFET N-CH 500V 46A SUPER247
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay Siliconix
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	500V
Id - Continuous Drain Current	46A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	100mOhm at 28A, 10V
Gate Source Voltage(th) (Maximum) at Id	5V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	380nC at 10V
Gate Source Voltage (Maximum)	±30V
Input Capacitance (Ciss) (Maximum) at Vds	8110pF at 25V
Power Dissipation (Maximum)	540W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	SUPER-247 (TO-274AA)
Manufacturer Package	TO-274AA
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Win Source Part Number	1187836-IRFPS40N50L
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRFPS40N50L CAD Model

Alternative Products

Description

The Vishay Siliconix IRFPS40N50L is an N-Channel MOSFET that is widely used in various electronic applications.

Win Source Part Number: 1187836-IRFPS40N50L
Series: SUPER-247 (TO-274AA)
Vds - Drain-Source Breakdown Voltage: 500V
Id - Continuous Drain Current: 46A
Rds On (Maximum) @ Id, Vgs: 100mOhm @ 28A, 10V
Vgs(th) (Maximum) @ Id: 5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs: 380nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 8110pF @ 25V
Operating Temperature: -55°C to 150°C
Gate Source Voltage (Maximum): ±30V
