Same model may have multiple batches, images only for reference.

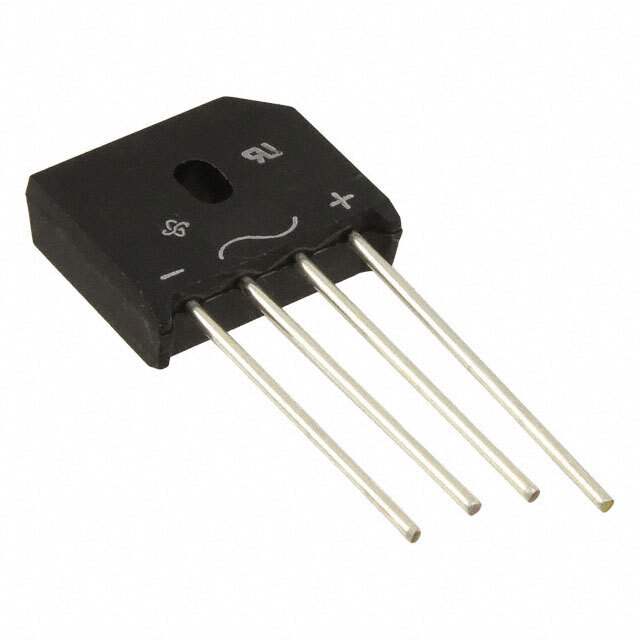

KBU4M-E4/51 Real Image
Same model may have multiple batches, images only for reference.

KBU4M-E4/51

Part No KBU4M-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE 4A 1000V KBU
Datasheet
KBU4M-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBU
Win Source Part Number 002148-KBU4M-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KBU4M-E4/51 CAD Model

Description

The KBU4M-E4/51 is a 4A Single Phase Bridge Rectifier Diode from Vishay.

  • Voltage Rating: 1000V
  • Forward Voltage Drop: 1V @ 4A
  • Designed for use in: a variety of applications, including power supplies, motor drives, and lighting systems
  • Package: KBU
  • Mounting: through hole
  • Low Reverse Leakage Current: 5μA @ 1000V
  • Operating Temperature Range: -50°C to 150°C
