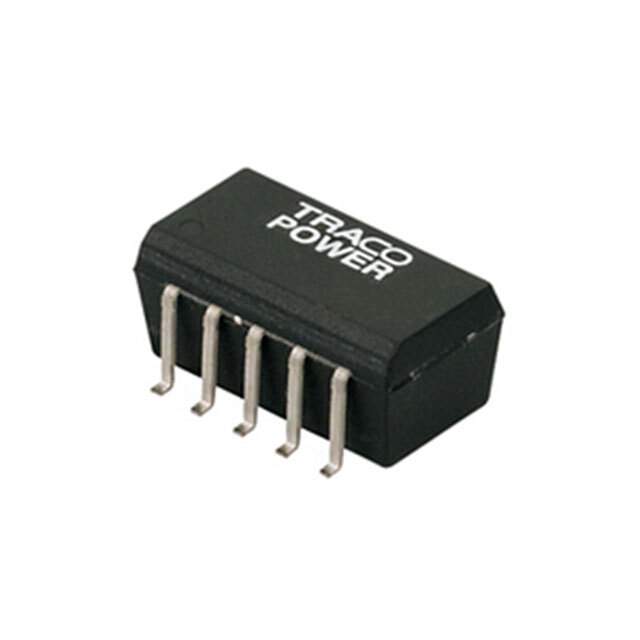

TSM 0505D Real Image
Same model may have multiple batches, images only for reference.

TSM 0505D

Part No TSM 0505D
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Datasheet
TSM 0505D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TSM (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting SMD (SMT)
Package / Case 18-SMD Module, 10 Leads
Dimension 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm)
Base Product Number TSM 0505
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2635
Standard Package 10
Win Source Part Number 1232572-TSM 0505D
Ultra Librarian 3D Model Ultra Librarian TSM 0505D CAD Model

Description

The TSM0505D is a 1W isolated DC-DC converter module from Traco Power.

  • Outputs: Two outputs, 5V and -5V, with a maximum output current of 100mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Isolation Voltage: 1kV
  • Features: SCP (Short Circuit Protection)
  • Efficiency: 75%
  • Application: ITE (Commercial) applications
  • Package: 18-SMD module package with 10 leads
  • Operating Temperature Range: -40°C to 85°C
