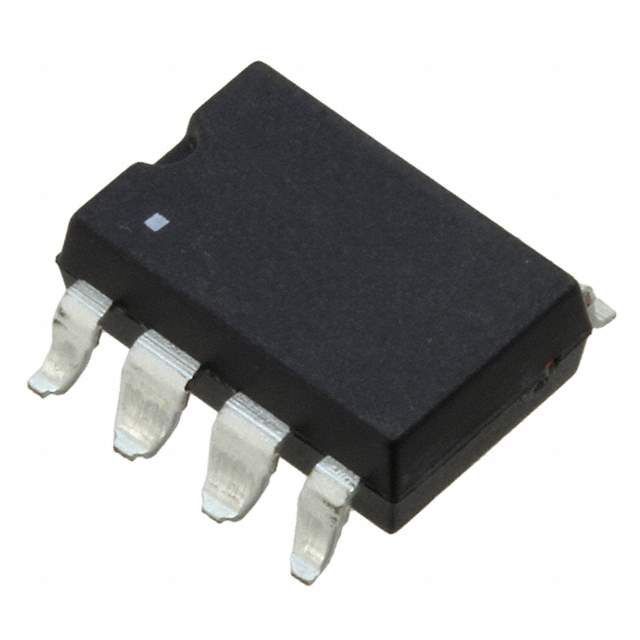

LH1502BACTR

Part No LH1502BACTR
Manufacturer Vishay
Catalog Solid State Relays
Description Dual 1 Form A/B, C Solid State Relay
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay Semiconductor Opto Division
Series LH1502
Packaging Reel - TR
Circuit DPST-NO/NC (1 Form A and B)
Output Type AC, DC
On-State Resistance (Maximum) 20 Ohm
Load Current 150mA
Voltage - Input 1.26VDC
Voltage - Load 0 ~ 350 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 1196365-LH1502BACTR
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name LH1502BAC
Introduction Date August 28, 2001
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian LH1502BACTR CAD Model

Description

The Vishay Semiconductor Opto Division electronic component with Win Source Part Number 1196365-LH1502BACTR is a limited supply product. It is part of the LH1502 series and is manufactured by Vishay Semiconductor Opto Division.

  • Popularity: medium
  • Relay Type: DPST-NO/NC (1 Form A and B)
  • Load Current: 150mA
