Same model may have multiple batches, images only for reference.

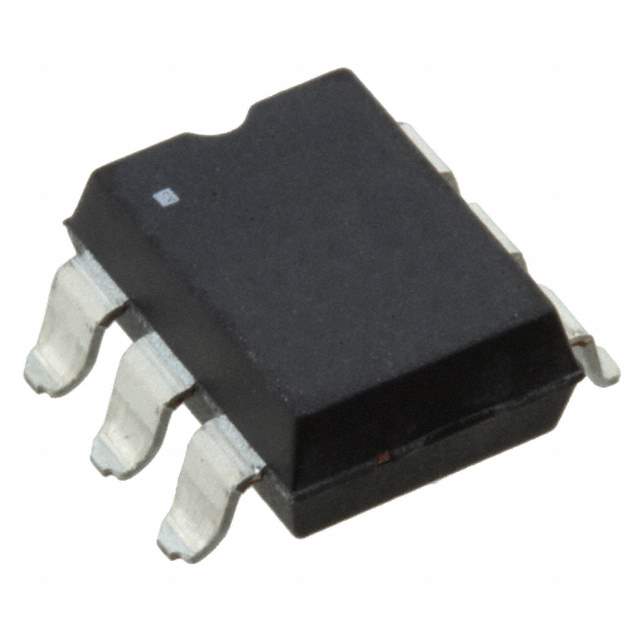

LH1511BAB Real Image
Same model may have multiple batches, images only for reference.

LH1511BAB

Part No LH1511BAB
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR GULLWING 1 FORM B
Datasheet
LH1511BAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 10 Ohm
Load Current 200mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 200 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 116189-LH1511BAB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1511BAB CAD Model

Description

This electronic component is manufactured by Vishay and has a Win Source Part Number of 116189-LH1511BAB.

  • Packaging: Tube/rail
  • Termination Style: Gull-wing
  • Mounting: SMD (SMT)
  • Input Voltage: 1.26VDC
  • Output Type: AC/DC
  • Circuit: SPST-NC (1 Form B)
  • Type: Relay
  • Load Current: 200mA
  • Voltage Load: 0 to 200 V
  • Category: Relays
  • Status: Active
  • Max on Resistance: 10 Ohm
  • Case/Package: 6-SMD
  • Supply and Demand Status: Limited
