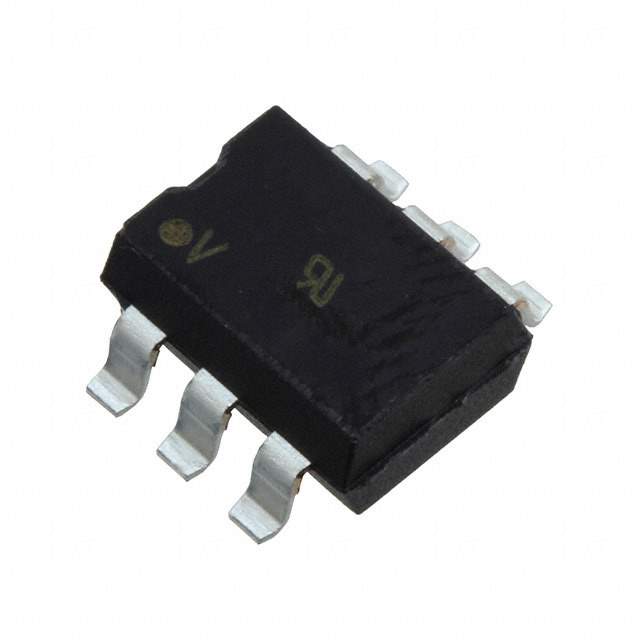

LH1540AABTR Real Image
Same model may have multiple batches, images only for reference.

LH1540AABTR

Part No LH1540AABTR
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR 1 FORM A
Datasheet
LH1540AABTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 018601-LH1540AABTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1540AABTR CAD Model

Description

The Vishay LH1540AABTR is a relay designed for use in circuit protection applications.

  • Mounting: It is mounted using SMD (SMT) technology and has a gull wing termination style.
  • Input Voltage: 1.26VDC
  • Output Type: AC, DC
  • Relay Type: single-pole, single-throw (SPST-NO)
  • Load Current: 120mA
  • Voltage Load: 0 to 350 V
  • Max On Resistance: 20 Ohm
  • Package: 6-SMD case
  • Usage: This is a common-used part and has a high popularity.
