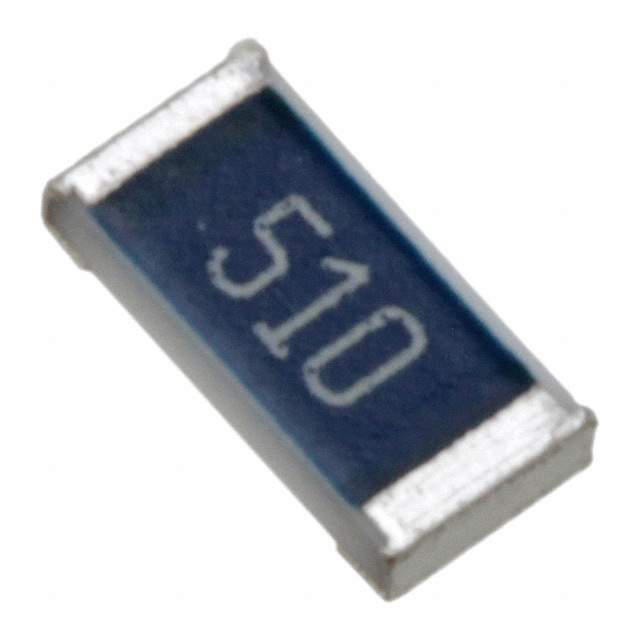

M251206BB1009JP500 Real Image
Same model may have multiple batches, images only for reference.

M251206BB1009JP500

Part No M251206BB1009JP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 10 OHM 5% 1/4W 1206  /  10 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Flame Retardant Coating, Fusible, Pulse Withstanding, Safety Thin Film
Datasheet
M251206BB1009JP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series M25SI
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Flame Retardant Coating, Fusible, Pulse Withstanding, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names M251206-10BCT,M251206-10BTR,M251206-10BDKR
Standard Package 5,000
Win Source Part Number 1073463-M251206BB1009JP500
Ultra Librarian 3D Model Ultra Librarian M251206BB1009JP500 CAD Model

Description

The M25SI 1073463-M251206BB1009JP500 is a chip resistor with a resistance of 10 Ohms from Vishay Beyschlag/Draloric/BC Components.

  • Resistance: 10 Ohms
  • Power Rating: 0.25W, 1/4W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Package: 1206 (3216 Metric)
  • Packaging: Tape & Reel
  • Height: 0.024" (0.60mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Features: Flame Retardant Coating, Fusible, Pulse Withstanding, Safety
  • Temperature Range: -55°C to 125°C
  • Description: It is an ideal component for various electronic devices.
