Same model may have multiple batches, images only for reference.

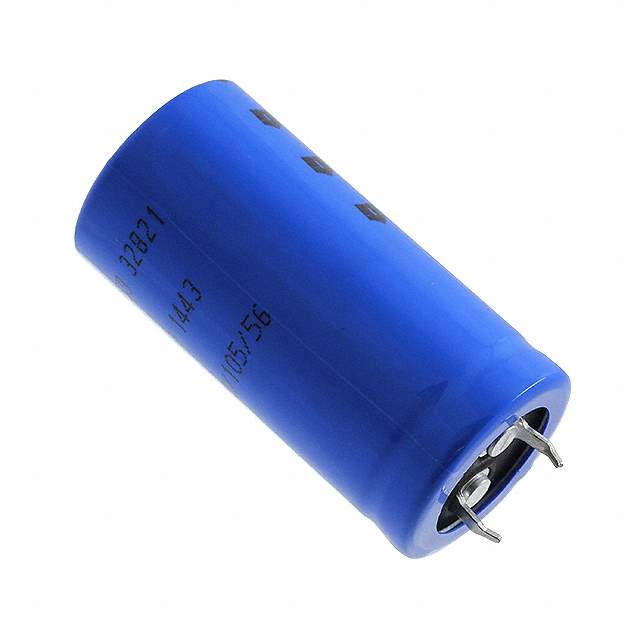

MAL215932821E3 Real Image
Same model may have multiple batches, images only for reference.

MAL215932821E3

Part No MAL215932821E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 820UF 20% 200V SNAP  /  820 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 290mOhm @ 100Hz 5000 Hrs @ 105°C
Datasheet
MAL215932821E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 159 PUL-SI
Package Bulk
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) 290mOhm @ 100Hz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.04 A @ 120 Hz
Impedance 240 mOhms
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 4691PHBK
Standard Package 100
Win Source Part Number 967884-MAL215932821E3
Ultra Librarian 3D Model Ultra Librarian MAL215932821E3 CAD Model

Description

The 159 PUL-SI series MAL215932821E3 is an aluminum electrolytic capacitor designed for use in general purpose applications from Vishay Beyschlag/Draloric/BC Components.

  • Package: Radial, Can - Snap-In
  • Capacitance: 820 µF
  • Tolerance: ±20%
  • Rated Voltage: 200V
  • Impedance: 240 mOhms
  • ESR: 290mOhm @ 100Hz
  • Lifetime: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Surface Mount Land Size: -
  • Operating Temperature: -25°C to 105°C
  • HTSUS Code: 8532.22.0040
  • Other Names: 4691PHBK
