Same model may have multiple batches, images only for reference.

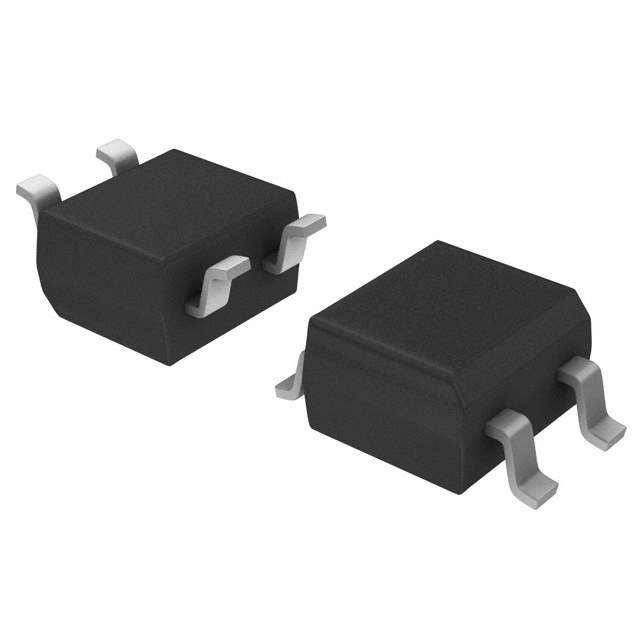

MB4S-E3/80 Real Image
Same model may have multiple batches, images only for reference.

MB4S-E3/80

Part No MB4S-E3/80
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE GPP 0.5A 400V MINI TO269AA
Datasheet
MB4S-E3/80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 022357-MB4S-E3/80
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MB4S-E3/80 CAD Model

Description

The MB4S-E3/80 is a single-phase diode designed and manufactured by Vishay.

  • Device Type: Surface-Mount
  • Current Rating: 500mA
  • Voltage Forward (Vf) (Max) @ If: 1V @ 400mA
  • Current Reverse Leakage @ Vr: 5μA @ 400V
  • Voltage Peak Reverse (Max): 400V
  • Supply and Demand Status: Limited
  • Package: Reel
