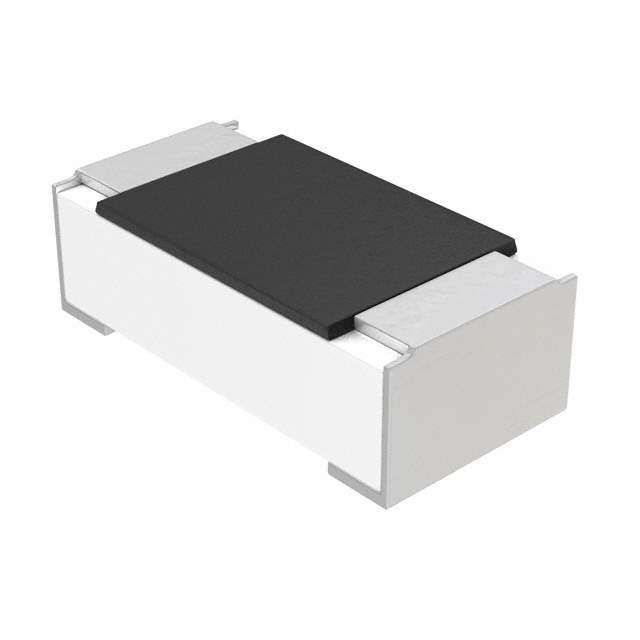

MCS04020C1501FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C1501FE000

Part No MCS04020C1501FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1.5K OHM 1% 1/16W 0402 / 1.5 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet
MCS04020C1501FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCS - Professional
Package Tape & Reel
Resistance 1.5 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
Base Product Number MCS0402
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351010-MCS04020C1501FE000
Ultra Librarian 3D Model Ultra Librarian MCS04020C1501FE000 CAD Model

Description

The MCS04020C1501FE000 is a chip resistor from Vishay Beyschlag/Draloric/BC Components.

  • Series: MCS - Professional
  • Feature: Anti-Sulfur
  • Resistance: 1.5 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power Rating: 0.063W, 1/16W
  • Composition: Thin Film
  • Package Type: 0402 (1005 Metric)
  • Packaging: Tape and Reel
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.015" (0.37mm) Seated
  • Operating Temperature Range: -55°C to 155°C
  • MSL: 1 (Unlimited)
  • HTSUS: 8533.21.0030
