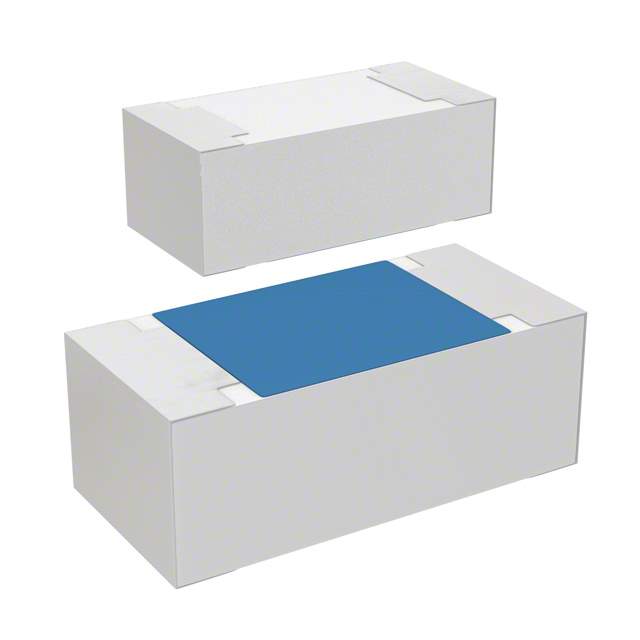

MCS0402MD2002BE100 Real Image
Same model may have multiple batches, images only for reference.

MCS0402MD2002BE100

Part No MCS0402MD2002BE100
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 20K OHM 0.1% 1/10W 0402  /  20 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCS AT - Precision
Package Tape & Reel
Resistance 20 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names MCS0402-20.0K-MBCT,MCS0402-20.0K-MBDKR,MCS0402-20.0K-MBTR
Standard Package 1,000
Win Source Part Number 1078289-MCS0402MD2002BE100
Ultra Librarian 3D Model Ultra Librarian MCS0402MD2002BE100 CAD Model

Description

The MCS0402MD2002BE100 is a chip resistor - surface mount manufactured by Vishay Beyschlag/Draloric/BC Components.

  • AEC-Q200: rated product with a precision MCS AT series
  • Package: tape & reel with a 0402 (1005 Metric) package/case
  • Resistance: 20 kOhms
  • Power (Watts): 0.1W, 1/10W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Alternative Parts (Cross-Reference): ERA-2AEB203X and CPF0402B20KE
