Same model may have multiple batches, images only for reference.

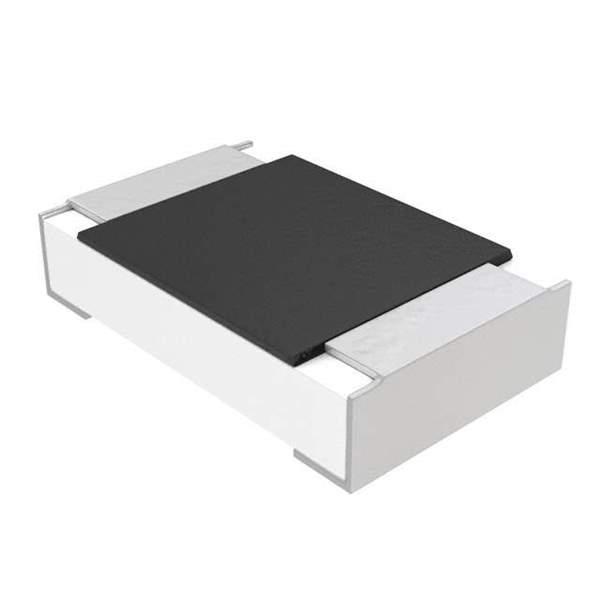

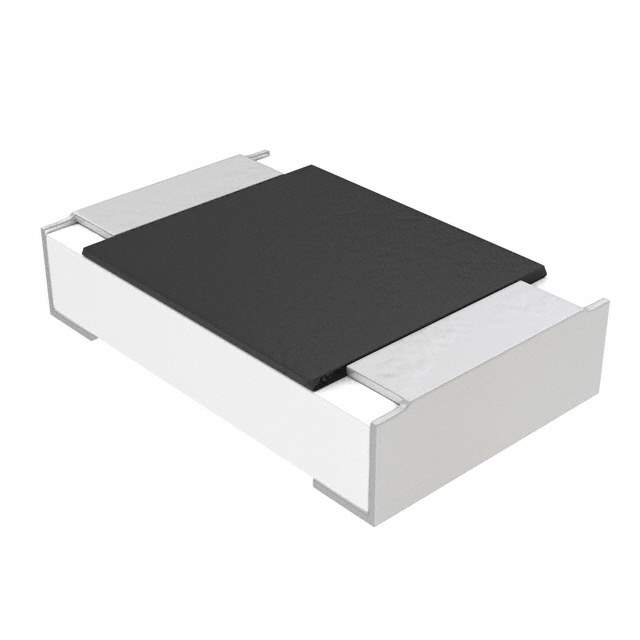

MCU08050C2400FP500 Real Image
Same model may have multiple batches, images only for reference.

MCU08050C2400FP500

Part No MCU08050C2400FP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 240 OHM 1% 1/5W 0805
Datasheet
MCU08050C2400FP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 240
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0805
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Win Source Part Number 1075623-MCU08050C2400FP500
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MCU08050C2400FP500 CAD Model

Description

The Vishay MCU08050C2400FP500 resistor with Win Source Part Number 1075623 comes in reel - TR packaging type.

  • Height: 0.022" (0.55mm) when seated
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Power (watts): 0.2W, 1/5W
  • Resistance (ohms): 240
  • Composition: thin film
  • Terminations: 2
  • Category: Resistors
  • Supply and Demand: sufficient
  • Temperature Range: -55°C to 155°C
  • Case/Package: 0805 case/package
