Same model may have multiple batches, images only for reference.

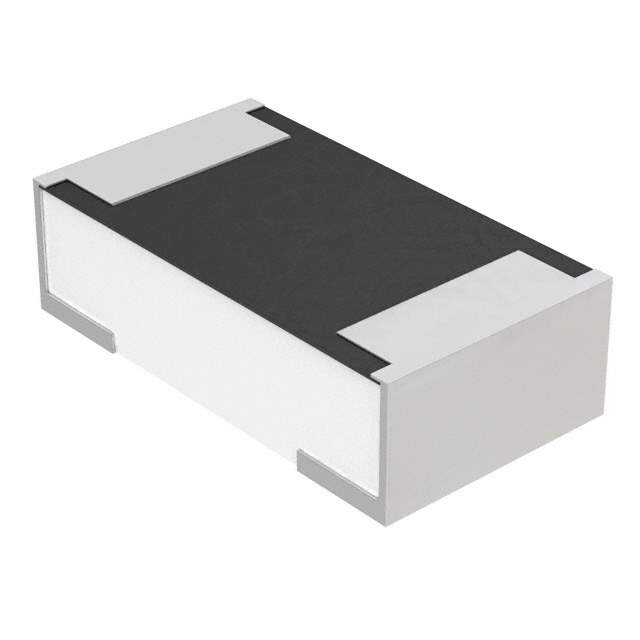

MFU0603FF01000P100 Real Image
Same model may have multiple batches, images only for reference.

MFU0603FF01000P100

Part No MFU0603FF01000P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 1A 32VDC 0603  /  1 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
MFU0603FF01000P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0028
Approval Agency IEC, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
DC Cold Resistance 0.17 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names MFU06031.00CT,MFU06031.00TR,MFU06031.00DKR
Standard Package 1,000
Win Source Part Number 995764-MFU0603FF01000P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF01000P100 CAD Model

Description

The MFU0603FF01000P100 is a board mount fast-blow fuse manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Voltage Rating: 32V
  • Current Rating: 1A
  • Breaking Capacity: 50A
  • DC Cold Resistance: 0.17 Ohms
  • Response Time: Fast Blow
  • Melting I2t: 0.0028
  • RoHS Compliant: Yes
  • Mounting: SMD (SMT)
  • Package: 0603 (1608 Metric)
  • Package Type: Tape and Reel
  • Temperature Range: -55°C to 125°C
