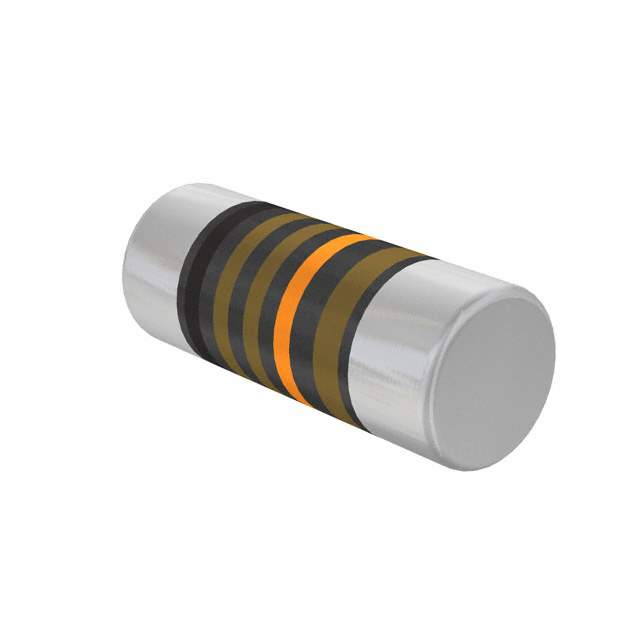

The MMA02040C2701FB300 is a chip resistor from Vishay Beyschlag/Draloric/BC Components.

• Series: It is part of the MMA - Professional series
• Packaging: packaged in tape and reel format.
• Height: has a height of seated (max) of -
• Tolerance: a tolerance of ±1%
• Temperature Coefficient: a temperature coefficient of ±50ppm/°C.
• Power Rating: It has a power rating of 0.4W, 2/5W
• Resistance: a resistance of 2.7 kOhms with a thin film composition.
• Package/Case: The package/case is MELF, 0204 with a dimension of 0.055" Dia x 0.142" L (1.40mm x 3.60mm).
• AEC-Q200: It is AEC-Q200 rated
• Failure Rate: has a failure rate of -.
• Mounting: This resistor is suitable for use in surface mount applications
• Standard Package: a standard package of 3,000 units.
