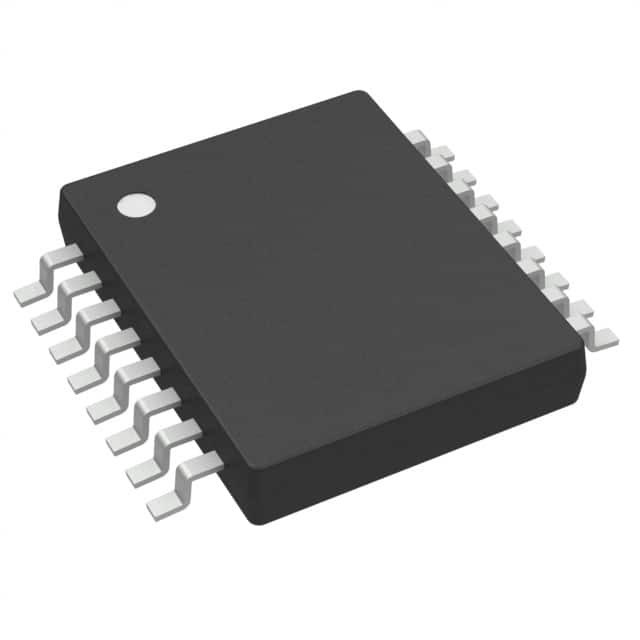

Same model may have multiple batches, images only for reference.
OSOPTB1001AT0 Vishay
Same model may have multiple batches, images only for reference.

OSOPTB1001AT0

Part No OSOPTB1001AT0
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Datasheet
OSOPTB1001AT0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Vishay Dale Thin Film
Series OSOP
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±0.1%
Number of Resistors 8
Resistor Matching Ratio ±0.025%
Resistor-Ratio-Drift ±5ppm/°C
Number of Pins 16
Power Per Element 100mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SSOP (0.154", 3.90mm Width)
Dimension 0.193" L x 0.154" W (4.90mm x 3.91mm)
Height - Seated (Max) 0.068" (1.73mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0010
Win Source Part Number 1314971-OSOPTB1001AT0
Ultra Librarian 3D Model Ultra Librarian OSOPTB1001AT0 CAD Model

Description

The Vishay Dale Thin Film OSOP series is a resistor network array with a package of tape and reel. Bold the product name and manufacturer, though not explicitly specified here, would apply to <strong>Vishay Dale</strong> in this context.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Resistance: 1k
  • Circuit Type: isolated
  • Number of Resistors: eight
  • Number of Pins: 16
  • Power per Element: 100mW
  • Package/Case: 16-SSOP (0.154", 3.90mm width)
  • Supplier Device Package: -
  • Operating Temperature Range: -55°C to 125°C
  • Dimension: 0.193" L x 0.154" W (4.90mm x 3.91mm)
