Same model may have multiple batches, images only for reference.

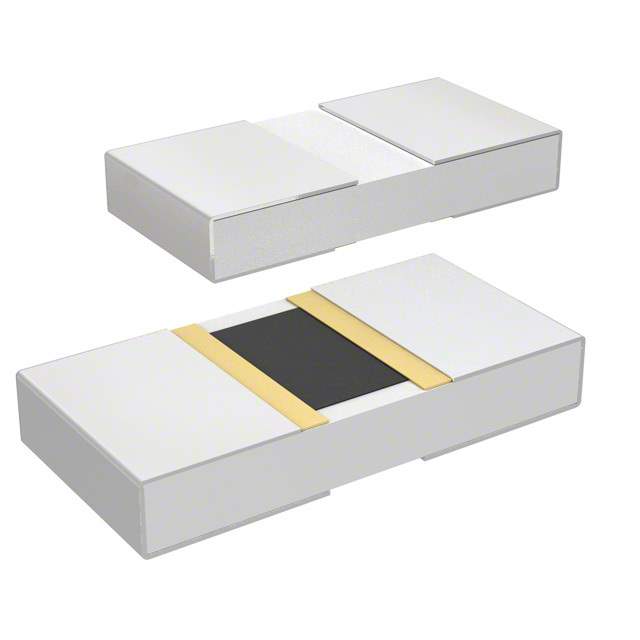

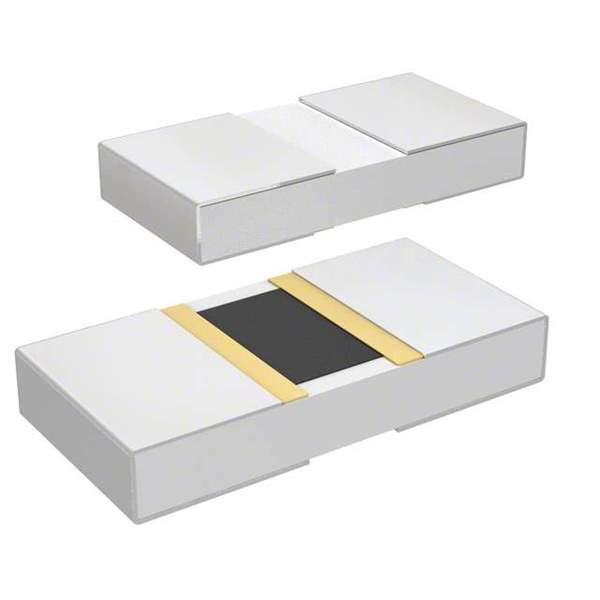

PHP00805E30R1BST1 Real Image
Same model may have multiple batches, images only for reference.

PHP00805E30R1BST1

Part No PHP00805E30R1BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 30.1 OHM 0.1% 5/8W 0805 / 30.1 Ohms ±0.1% 0.63W, 5/8W Chip Resistor 0805 (2012 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP00805E30R1BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHP
Package Tape & Reel
Resistance 30.1 Ohms
Tolerance ±0.1%
Power (Watts) 0.63W, 5/8W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339503-PHP00805E30R1BST1
Ultra Librarian 3D Model Ultra Librarian PHP00805E30R1BST1 CAD Model

Description

The PHP00805E30R1BST1 is a flame proof, moisture resistant, and safety chip resistor manufactured by Vishay Dale Thin Film that has a package of tape & reel.

  • Size Dimension: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Height: 0.033" (0.84mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.63W
  • Resistance: 30.1 Ohms
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Temperature Range: -55°C ~ 155°C
