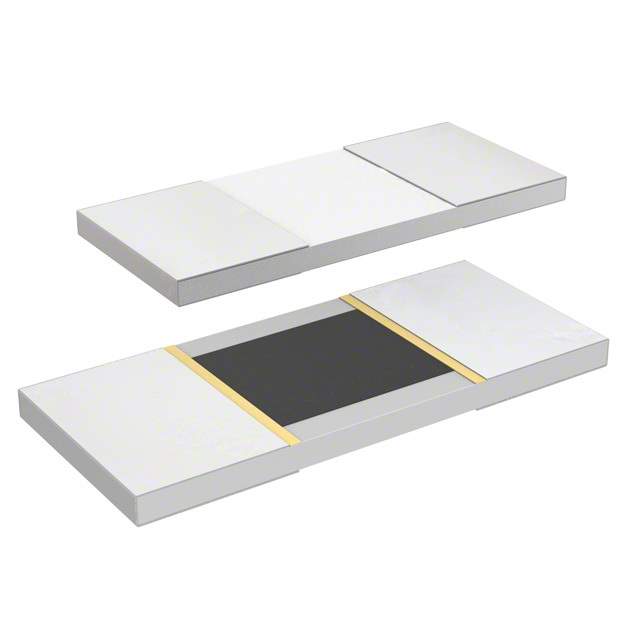

PHP02512E7500BST5 Real Image
Same model may have multiple batches, images only for reference.

PHP02512E7500BST5

Part No PHP02512E7500BST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 750 OHM 0.1% 2.5W 2512 / 750 Ohms ±0.1% 2.5W Chip Resistor 2512 (6432 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PHP02512E7500BST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale Thin Film
Packaging Reel - TR
Resistance 750 Ohms
Tolerance ±0.1%
Power (Watts) 2.5W
Composition Thin Film
Features Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.259" L x 0.124" W (6.58mm x 3.15mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number PHP750BTR,PHP750BDKR,PHP750BCT
Standard Package 500
Win Source Part Number 1327307-PHP02512E7500BST5
Ultra Librarian 3D Model Ultra Librarian PHP02512E7500BST5 CAD Model

Description

The Vishay Dale Thin Film chip resistor is a high-quality, reliable electronic component for use in a range of applications.

  • Feature: Flame Proof, Moisture Resistant, Safety
  • Power Rating: 2.5W
  • Resistance: 750 Ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Composition: Thin Film
  • Terminations: 2
  • Size: 0.259" L x 0.124" W (6.58mm x 3.15mm)
  • Seated Height: 0.033" (0.84mm)
  • Packaging: Reel
  • Resistors per Package: 500
  • Temperature Range: -55°C to 155°C
  • ECCN: EAR99 compliant
