Same model may have multiple batches, images only for reference.

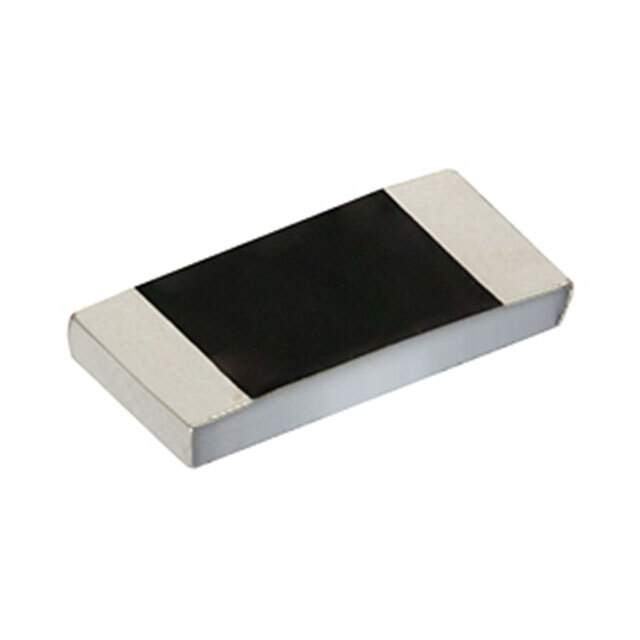

PHPA1206E40R2BST1 Real Image
Same model may have multiple batches, images only for reference.

PHPA1206E40R2BST1

Part No PHPA1206E40R2BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description THIN FILM RES SMD 40.2 OHM 0.1% / 40.2 Ohms ±0.1% 1W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant Thin Film
Datasheet
PHPA1206E40R2BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PHPA
Package Tape & Reel
Resistance 40.2 Ohms
Tolerance ±0.1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, High Power, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.020" (0.51mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351451-PHPA1206E40R2BST1
Ultra Librarian 3D Model Ultra Librarian PHPA1206E40R2BST1 CAD Model

Description

The Vishay Dale Thin Film PHPA1206E40R2BST1 is a high-power, thin-film chip resistor with a resistance of 40.2 ohms.

  • Resistance: 40.2 ohms
  • Features: Anti-sulfur composition, moisture resistance, automotive AEC-Q200 ratings
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Package Size: 1206 (3216 Metric)
  • Height: 0.020" (0.51mm)
