Same model may have multiple batches, images only for reference.

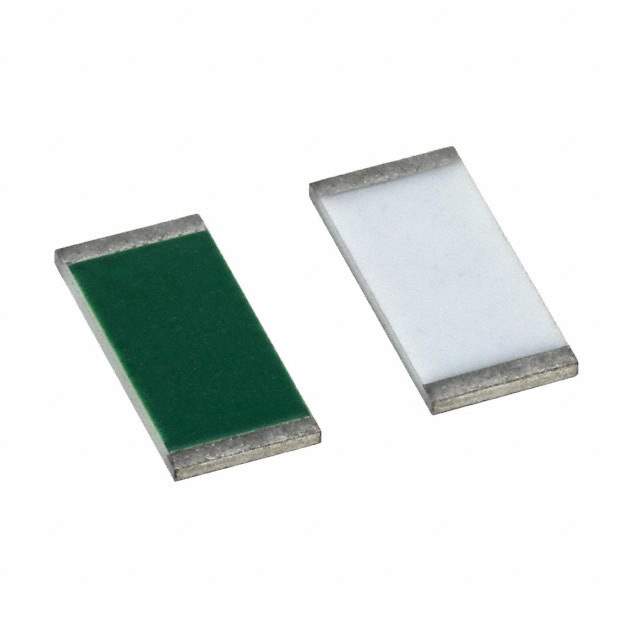

PLT0805Z5001AST5 Real Image
Same model may have multiple batches, images only for reference.

PLT0805Z5001AST5

Part No PLT0805Z5001AST5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 5K OHM 0.05% 1/4W 0805 / 5 kOhms ±0.05% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
Datasheet
PLT0805Z5001AST5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PLT
Package Tape & Reel
Resistance 5 kOhms
Tolerance ±0.05%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Corrosive, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names PLT0805-5.0KATR,PLT0805-5.0KACT,PLT0805-5.0KADKR
Standard Package 500
Win Source Part Number 1106153-PLT0805Z5001AST5
Ultra Librarian 3D Model Ultra Librarian PLT0805Z5001AST5 CAD Model

Description

The PLT0805Z5001AST5 is a Chip Resistor - Surface Mount from Vishay Dale Thin Film. It features a resistance of 5 kOhms and a tolerance of ±0.05%.

  • Manufacturer: Vishay Dale Thin Film
  • Type: Chip Resistor - Surface Mount
  • Resistance: 5 kOhms
  • Tolerance: ±0.05%
  • Power: 0.25W
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Standard Package: 500 units
