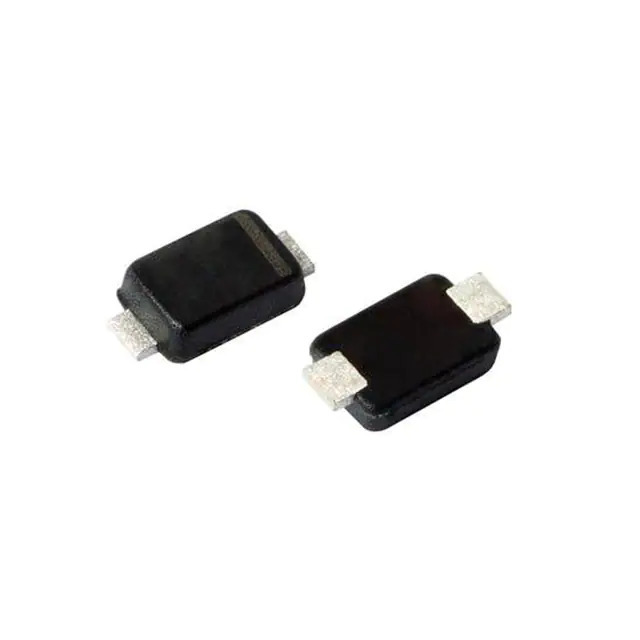

Same model may have multiple batches, images only for reference.
PLZ18C-G3/H Vishay
Same model may have multiple batches, images only for reference.

PLZ18C-G3/H

Part No PLZ18C-G3/H
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 18V 500MW DO219AC
Datasheet
PLZ18C-G3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series PLZ
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 18 V
Tolerance ±3%
Power - Max 500 mW
Impedance (Max) (Zzt) 23 Ohms
Current - Reverse Leakage @ Vr 200 nA @ 13 V
Voltage - Forward (Vf) (Max) @ If 800 mV @ 10 mA
Temperature Range - Operating 150°C
Mounting Type Surface Mount
Package / Case DO-219AC
Supplier Device Package DO-219AC (microSMF)
Base Product Number PLZ18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1367556-PLZ18C-G3/H
Ultra Librarian 3D Model Ultra Librarian PLZ18C-G3/H CAD Model

Description

The PLZ18C-G3/H is a single zener diode from Vishay General Semiconductor - Diodes Division. It is part of the PLZ series and has a zener voltage of 18V.

  • Series: PLZ
  • Zener Voltage: 18V
  • Mounting Type: Surface Mount
  • Package/Case: DO-219AC
  • Power - Max: 500mW
  • Impedance: 23 Ohms
  • Tolerance: ±3%
  • Forward Voltage: 800mV @ 10mA
  • Reverse Leakage Current: 200nA @ 13V
  • Operating Temperature: Up to 150°C
  • MSL: Level 1 (Unlimited)
  • REACH: Unaffected
  • ECCN: EAR99
