Same model may have multiple batches, images only for reference.

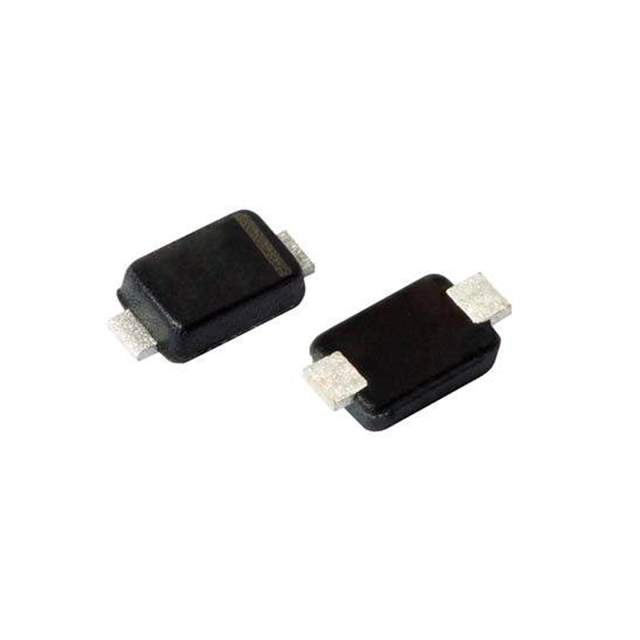

PLZ5V6A-G3/H Real Image
Same model may have multiple batches, images only for reference.

PLZ5V6A-G3/H

Part No PLZ5V6A-G3/H
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.42V 960MW DO219AC / Zener Diode 5.42 V 960 mW ±2.49% Surface Mount DO-219AC (microSMF)
Datasheet
PLZ5V6A-G3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series PLZ
Package Tape & Reel
Voltage - Zener (Nom) (Vz) 5.42 V
Tolerance ±2.49%
Power - Max 960 mW
Impedance (Max) (Zzt) 13 Ohms
Current - Reverse Leakage @ Vr 5 µA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AC
Supplier Device Package DO-219AC (microSMF)
Base Product Number PLZ5V6
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1351712-PLZ5V6A-G3/H
Ultra Librarian 3D Model Ultra Librarian PLZ5V6A-G3/H CAD Model

Description

The PLZ series from Vishay General Semiconductor-Diodes Division includes the PLZ5V6A-G3/H, a single zener diode.

  • Standard Package: 4,500
  • Tolerance: ±2.49%
  • Maximum Power: 960 mW
  • Mounting Type: Surface Mount
  • Package/Case: DO-219AC
  • Reverse Leakage Current: 5 µA @ 2.5 V
  • Voltage Forward (Vf): 900 mV @ 10 mA (Max)
  • Voltage Zener (Nom) (Vz): 5.42 V
  • Impedance (Max) (Zzt): 13 Ohms
  • Operating Temperature: 150°C (TJ)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.10
