Same model may have multiple batches, images only for reference.

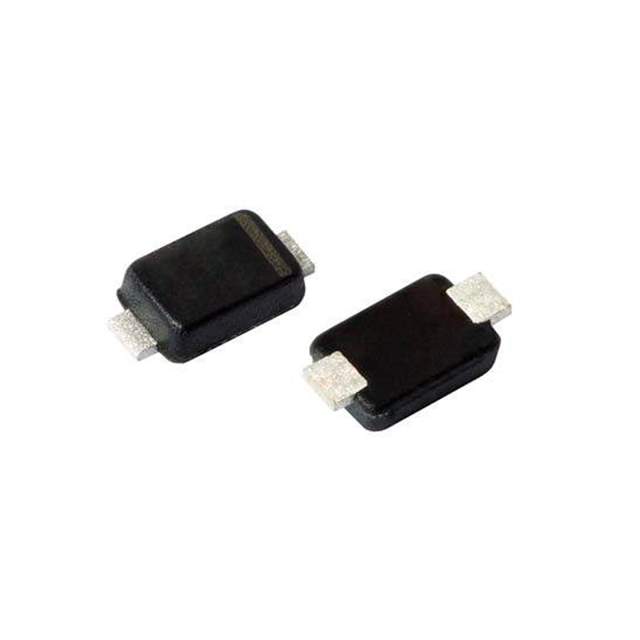

PLZ6V8C-HG3_A/H Real Image
Same model may have multiple batches, images only for reference.

PLZ6V8C-HG3_A/H

Part No PLZ6V8C-HG3_A/H
Manufacturer Vishay
Catalog Diodes - Zener - Single
Description DIODE ZENER 6.84V 960MW DO219AC / Zener Diode 6.84 V 960 mW ±2.56% Surface Mount DO-219AC (microSMF)
Datasheet
PLZ6V8C-HG3_A/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Reel - TR
Voltage - Zener (Nom) (Vz) 6.84 V
Tolerance ±2.56%
Power - Max 960 mW
Impedance (Max) (Zzt) 8 Ohms
Current - Reverse Leakage @ Vr 2 µA @ 3.5 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating 150°C (TJ)
Mounting Surface Mount
Case / Package DO-219AC
Supplier Device Package DO-219AC (microSMF)
Base Product Number PLZ6V8
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Part Number PLZ6V8C-HG3/HGICT-ND,PLZ6V8C-HG3/HGICT,PLZ6V8C-HG3/HGITR,112-PLZ6V8C-HG3_A/HCT,112-PLZ6V8C-HG3_A/HTR,112-PLZ6V8C-HG3_A/HDKR,PLZ6V8C-HG3/HGIDKR-ND,PLZ6V8C-HG3/HGITR-ND,PLZ6V8C-HG3/HGIDKR,PLZ6V8C-HG3/H-ND,PLZ6V8C-HG3/H
Standard Package 4,500
Win Source Part Number 1323989-PLZ6V8C-HG3_A/H
Ultra Librarian 3D Model Ultra Librarian PLZ6V8C-HG3_A/H CAD Model

Description

The PLZ6V8C-HG3_A/H from Vishay General Semiconductor is a surface mount zener diode that is designed to regulate voltage in electronic circuits.

  • Voltage Rating: 6.84 V
  • Power Rating: 960 mW
  • AEC-Q200 Compliant: Yes
  • Operating Temperature: Up to 150°C
  • Packaging: Reel
  • Standard Package: 4,500 units
  • Package Size: DO-219AC (microSMF)
  • Tolerance: ±2.56%
  • Ideal For: Applications where voltage regulation is critical
