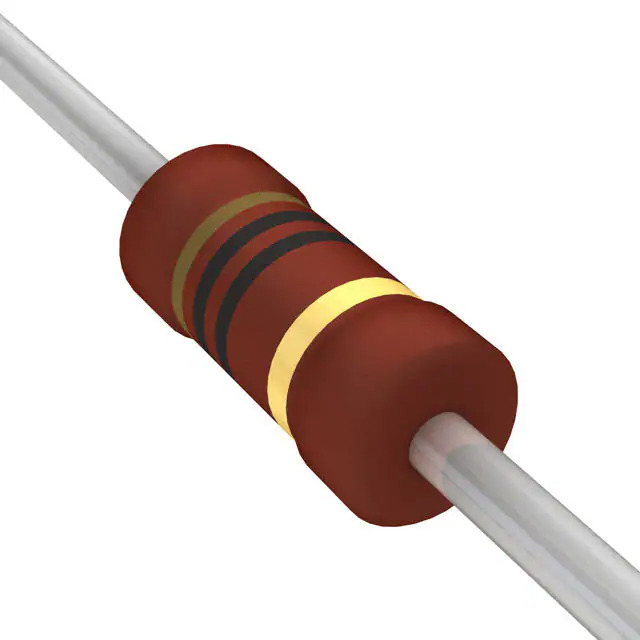

Same model may have multiple batches, images only for reference.

PR01000101009JR500

Name: PR01000101009JR500
Brand: Vishay
SKU: 1374785
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR01000101009JR500
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 10 OHM 1W 5% AXIAL
Datasheet	PR01000101009JR500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR01
Package	Tape & Reel (TR)
Product Status	Active
Resistance	10 Ohms
Tolerance	±5%
Power (Watts)	1W
Composition	Metal Film
Features	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374785-PR01000101009JR500
Ultra Librarian 3D Model	Ultra Librarian PR01000101009JR500 CAD Model

Alternative Products

Description

The PR01 series resistor is a high-quality through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

Application: Automotive
Standard: AEC-Q200
Features: Flame Retardant, Fusible
Resistance: 10 Ohms
Power Rating: 1W
Composition: Metal Film
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Temperature Range: -55°C to 155°C
Package: Axial
Size: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Product Status: Active
