Same model may have multiple batches, images only for reference.

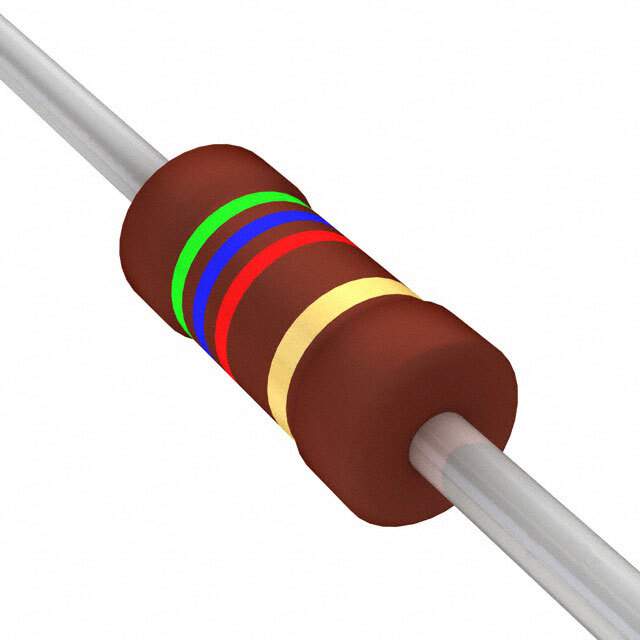

PR01000105601JA100 Real Image
Same model may have multiple batches, images only for reference.

PR01000105601JA100

Part No PR01000105601JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES AXIAL / Res Metal Film 5.6K Ohm 5% 1W ±250ppm/°C Conformal Coated AXL Automotive Ammo
Datasheet
PR01000105601JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay BC Components
Series PR01
Resistance (Ohms) 5.6k
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200
Temperature Coefficient ±250ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package Axial
Manufacturer Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
Win Source Part Number 771011-PR01000105601JA100
Popularity Medium
Supply and Demand Status Balance
Family Name PR01
Introduction Date December 14, 2005
ECCN EAR99
Country of Origin India
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PR01000105601JA100 CAD Model

Description

The Vishay BC Components PR01000105601JA100 is a metal film resistor manufactured by Vishay BC Components.

  • Power Rating: 1W
  • Resistance: 5.6k ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Series: PR01
  • Operating Temperature: -55°C to 155°C
  • Package: Axial
  • Dimension: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
  • Terminations: 2
  • EOL Date: 2026
  • ECCN: EAR99
  • Halogen Free: Yes
  • Application: Automotive
