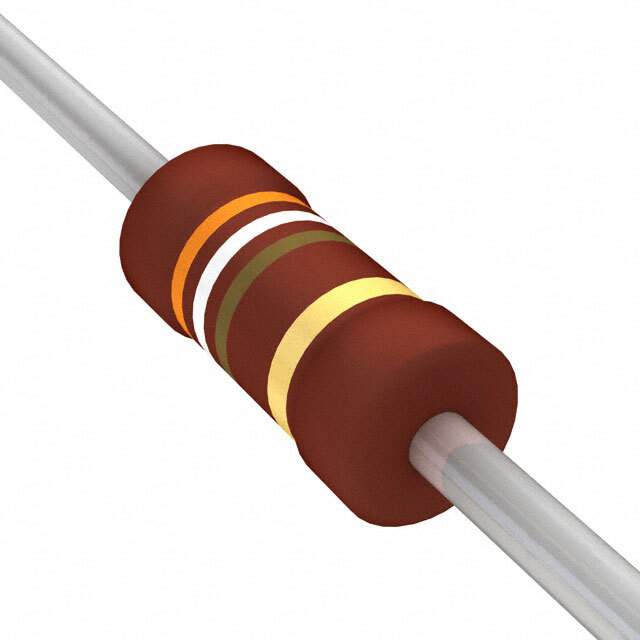

PR02000203900JR500 Real Image
Same model may have multiple batches, images only for reference.

PR02000203900JR500

Part No PR02000203900JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 390 OHM 2W 5% AXIAL  /  390 Ohms ±5% 2W Through Hole Resistor Axial Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety Metal Film
Datasheet
PR02000203900JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 390 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names BC390W-2CTINACTIVE,5083NW390R0J12AFX,PPC390W-2TR,BC390W-2TR-ND,PPC390W-2CT-NDR,BC390W-2TR,2306 198 23391,BC390W-2CT-ND,5083NW390R0J12AFXBC,230619823391,BC390W-2CT,PPC390W-2TR-NDR,BC390W-2TRINACTIVE,PPC390W-2CT
Standard Package 5,000
Win Source Part Number 1130332-PR02000203900JR500
Ultra Librarian 3D Model Ultra Librarian PR02000203900JR500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components PR02000203900JR500 is a through-hole resistor from the PR02 series.

  • Resistance: 390 Ohms
  • Power Rating: 2W
  • Material: Metal film
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Features: Fusible, automotive AEC-Q200, flame retardant coating, and safety
  • Packaging: Tape & reel (TR) or cut tape (CT)
  • Standard Package: 5,000
  • Package/Case: Axial
  • Dimension: 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
  • Terminations: 2
  • Supplier Device Package: Axial
  • Temperature Range: -55°C to 155°C
