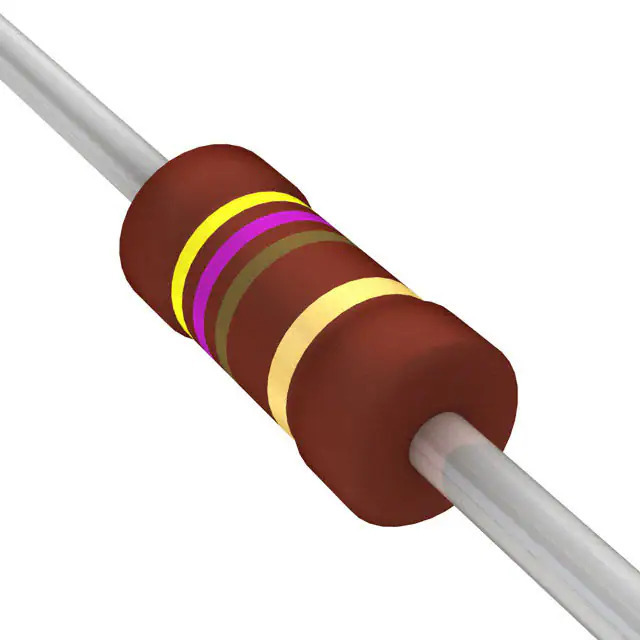

PR02000204700JR500 Vishay
Same model may have multiple batches, images only for reference.

PR02000204700JR500

Part No PR02000204700JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 470 OHM 2W 5% AXIAL
Datasheet
PR02000204700JR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series PR02
Package Tape & Reel (TR)
Product Status Active
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.154" Dia x 0.394" L (3.90mm x 10.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374603-PR02000204700JR500
Ultra Librarian 3D Model Ultra Librarian PR02000204700JR500 CAD Model

Description

The PR02 series resistor is a through-hole resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Resistance: 470 Ohms
  • Power Rating: 2W
  • Composition: Metal film
  • Tolerance: ±5%
  • Application: Automotive
  • Standard: AEC-Q200
  • Features: Flame Retardant, Fusible, Safety
  • Package: Axial
  • Packaging: Tape & reel
  • Size: 0.154" diameter x 0.394" length (3.90mm x 10.00mm)
  • Temperature Range: -55°C to 155°C
  • Temperature Coefficient: ±250ppm/°C
  • REACH: Unaffected
  • ECCN: EAR99
