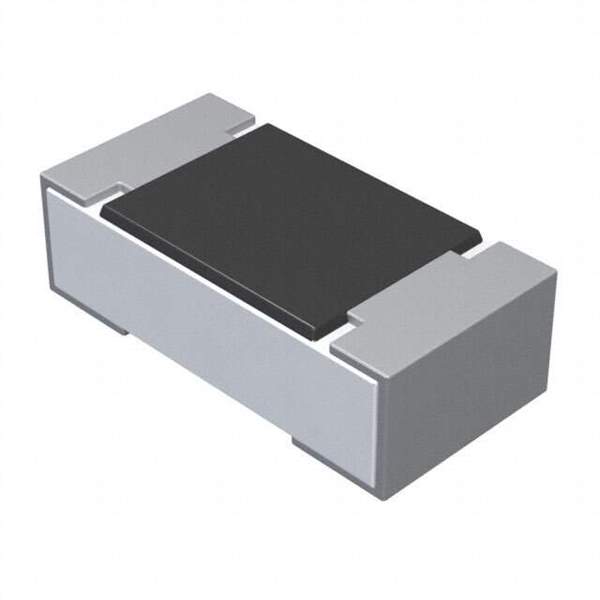

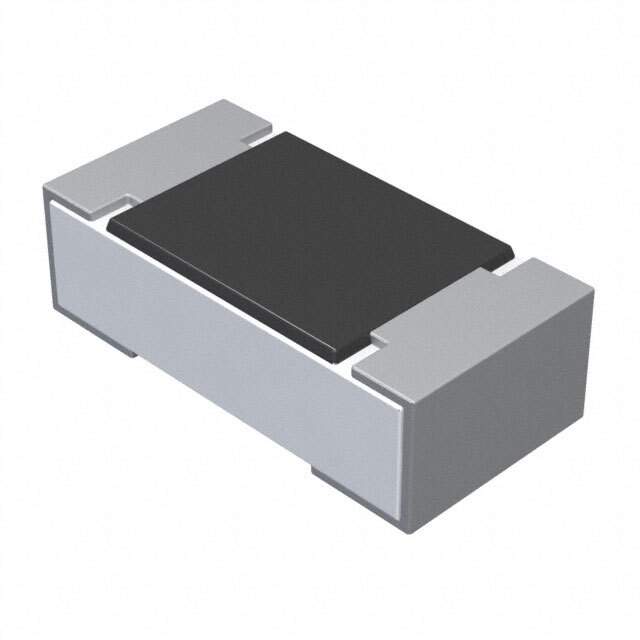

RCA0402100KFKEDHP Real Image
Same model may have multiple batches, images only for reference.

RCA0402100KFKEDHP

Part No RCA0402100KFKEDHP
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 100K OHM 1% 1/5W 0402 / 100 kOhms ±1% 0.2W, 1/5W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
RCA0402100KFKEDHP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series RCA-HP
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thick Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Standard Package 10,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341202-RCA0402100KFKEDHP
Ultra Librarian 3D Model Ultra Librarian RCA0402100KFKEDHP CAD Model

Description

The RCA0402100KFKEDHP is a chip resistor from Vishay Dale.

  • Manufacturer: Vishay Dale
  • Series: RCA-HP
  • Mounting Type: Surface Mount
  • Resistance: 100 kOhms
  • Power Rating: 0.2W (1/5W)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Compliance: AEC-Q200, Pulse Withstanding
  • Package / Case: 0402 (1005 Metric)
  • Height: 0.016” (0.40mm)
  • Length: 0.039” (1.00mm)
  • Temperature Range: -55°C to 155°C
  • ECCN: EAR99
