Same model may have multiple batches, images only for reference.

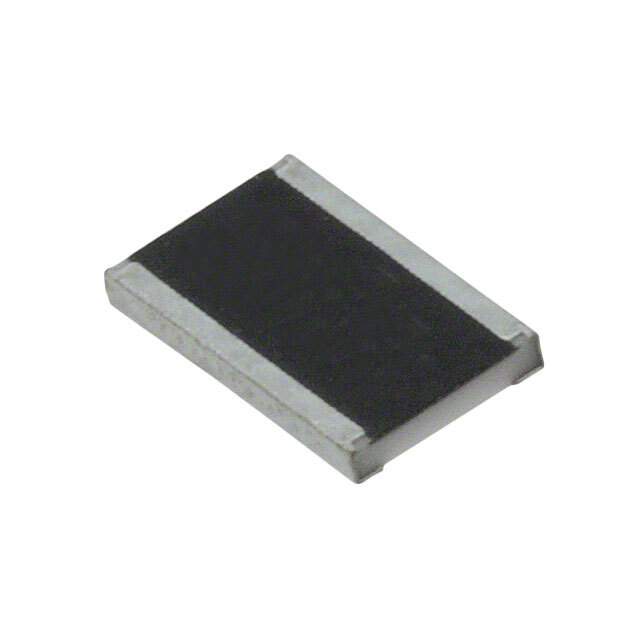

RCL1218220RJNEK Real Image
Same model may have multiple batches, images only for reference.

RCL1218220RJNEK

Part No RCL1218220RJNEK
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 220 OHM 1W 1812 WIDE / 220 Ohms ±5% 1W Chip Resistor Wide 1812 (4532 Metric), 1218 Automotive AEC-Q200 Thick Film
Datasheet
RCL1218220RJNEK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series RCL
Package Tape & Reel
Resistance 220 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Ratings AEC-Q200
Dimension 0.126" L x 0.181" W (3.20mm x 4.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names RCL220BCT,CRCW1218220RJNEK-ND,RCL220BTR,RCL220BDKR,CRCW1218220RJNEK
Standard Package 4,000
Win Source Part Number 959408-RCL1218220RJNEK
Ultra Librarian 3D Model Ultra Librarian RCL1218220RJNEK CAD Model

Description

The Vishay Dale RCL1218220RJNEK chip resistor is a surface mount device that has a resistance of 220 Ohms and is packaged in tape and reel.

  • Resistance: 220 Ohms
  • Packaging: Tape and reel
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • AEC-Q200: Yes
  • Power Rating: 1W
  • Composition: Thick film
  • Terminations: 2
  • Package: Wide 1812 (4532 Metric), 1218
  • Application: Automotive
