Same model may have multiple batches, images only for reference.

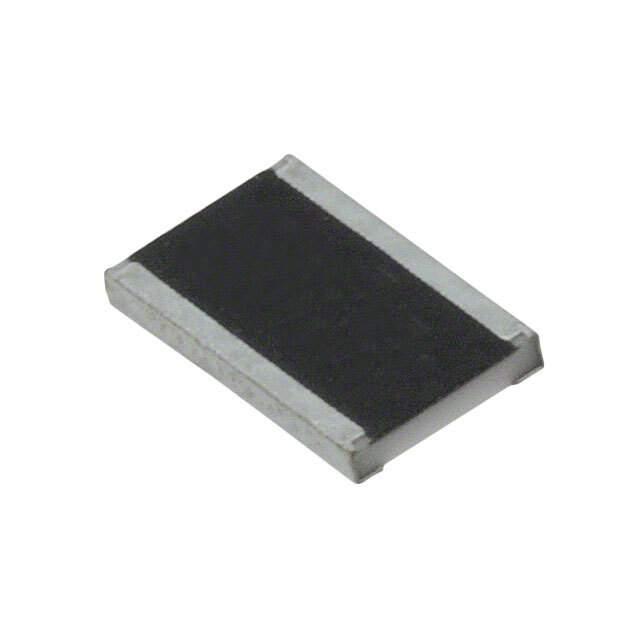

RCL1218470RFKEK Real Image
Same model may have multiple batches, images only for reference.

RCL1218470RFKEK

Part No RCL1218470RFKEK
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 470 OHM 1W 1812 WIDE  /  470 Ohms ±1% 1W Chip Resistor Wide 1812 (4532 Metric), 1218 Automotive AEC-Q200 Thick Film
Datasheet
RCL1218470RFKEK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series RCL
Package Tape & Reel
Resistance 470 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Ratings AEC-Q200
Dimension 0.126" L x 0.181" W (3.20mm x 4.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names CRCW1218470RFKEK,RCL470ATR,CRCW1218470RFKEK-ND,RCL470ADKR,RCL470ACT
Standard Package 4,000
Win Source Part Number 1134122-RCL1218470RFKEK
Ultra Librarian 3D Model Ultra Librarian RCL1218470RFKEK CAD Model

Description

The Vishay Dale RCL Series chip resistor is a high-quality, thick film resistor designed for use in automotive applications.

  • Resistance: 470 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • AEC-Q200 Rated: Yes
  • Power Rating: 1W
  • Composition: Thick film
  • Package/Case: Wide 1812 (4532 Metric), 1218
  • Supplier Device Package: 1218
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape and reel
  • Standard Package: 4,000
