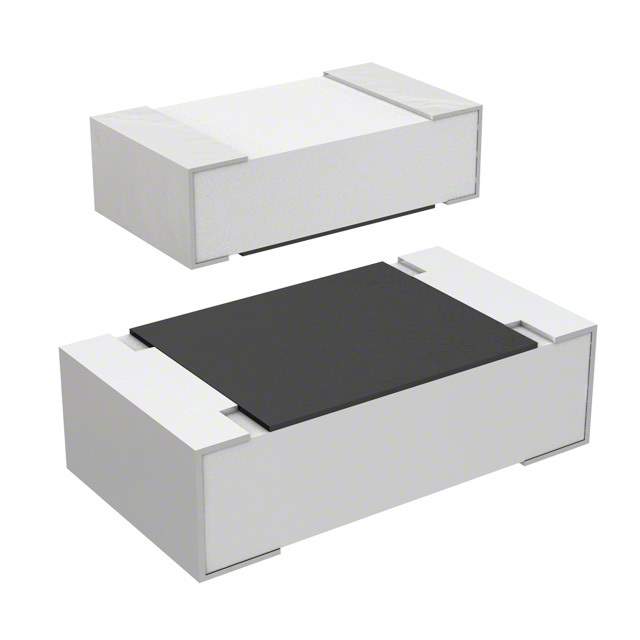

RCWL0603R910JNEA Real Image
Same model may have multiple batches, images only for reference.

RCWL0603R910JNEA

Part No RCWL0603R910JNEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.91 OHM 5% 1/10W 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Resistance 910 mOhms
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package 0603
Supplier Device Package 0603
Dimension 0.061" L x 0.033" W (1.55mm x 0.85mm)
Height - Seated (Maximum) 0.020" (0.50mm)
Number of Terminations 2
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813153-RCWL0603R910JNEA
Ultra Librarian 3D Model Ultra Librarian RCWL0603R910JNEA CAD Model

Description

The RCWL0603R910JNEA is a thick-film resistor from Vishay Dale.

  • Applications: Automotive AEC-Q200
  • Resistance: 910 mOhms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.1W (1/10W)
  • Form Factor: 0603
  • Package: Reel
  • Terminations: 2
  • Operating Temperature Range: -55°C to 155°C
  • Height: 0.020" (0.50mm)
  • Dimension: 0.061" L x 0.033" W (1.55mm x 0.85mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (Unlimited)
