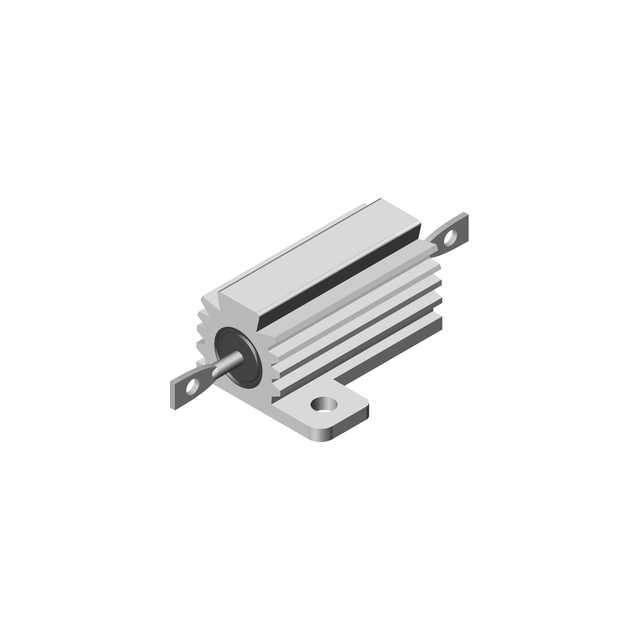

RH05080R00FC02 Vishay Dale
Same model may have multiple batches, images only for reference.

RH05080R00FC02

Part No RH05080R00FC02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 80 OHM 1% 50W
Datasheet
RH05080R00FC02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304924-RH05080R00FC02
Manufacturer Vishay Dale
Category Resistors-Chassis Mount Resistors
Packaging  Bulk
Part Status Active
Resistance (Ohms) 80 Ohms
Tolerance ±1%
Power (Watts) 50W
Temperature Coefficient ±20ppm/°C
Operating Temperature -55°C ~ 250°C
Composition Wirewound
Ultra Librarian 3D Model Ultra Librarian RH05080R00FC02 CAD Model

Description

FEATURES<br />• Molded construction for total environmental protection<br />• Complete welded construction<br />• Meets applicable requirements of MIL-PRF-18546<br />• Available in non-inductive styles (type NH) with Ayrton-Perry winding for lowest reactive components<br />• Mounts on chassis to utilize heat-sink effect<br />• Excellent stability in operation (< 1 % change in resistance)
